Adjustable Ball Lock Pin (T Handle) – Cable Assembly

Adjustable Ball Lock Pin (T Handle) – Cable Assembly

$124.07


Brand: Carr Lane

Adjustable Ball Lock Pin (T Handle) – Cable Assembly

SKU: CL-12-ABPT-3.00-S-C Category:

Description

Adjustable Ball Lock Pins have an adjustable grip length. They can be used for clamping, or simply to provide a variable grip length. The threaded handle turns to provide a +/- 1/4″ clamping range or adjustment range. When used just for variable grip length (not for clamping), the handle can be secured with the supplied knurled locknut. Ball Lock Pins are high-strength, quick-release alignment pins with a precision ground shank. They are positive locking until released by pushing the button, which moves the center spindle forward to allow the balls to retract. Adjustable Ball Lock Pins have four balls as standard, instead of two, for more-distributed ball-pullout force in clamping applications. The T-handle version shown here is one of three available handle styles. Patent no. 3,101,641. Made in USA. Available in pin diameters from 1/4 to 1″ (6 to 20mm in metric), in stainless steel only. Standard grip lengths for each diameter are listed in the tables below, most in stock for same-day shipment. Pins with special grip lengths up to 12” (300mm) and other special features are available with additional lead time. The Part Configurator link at the top of this page can be used for any Adjustable Ball Lock Pin, either standard or special.

Additional information

Product Type

Nominal Pin Diameter

3/4 in

Maximum Pin Diameter

0.886 in

Grip Length

3 in

Spring Material

17-7PH/302 Stainless Steel

Handle Material

Aluminum Alloy

Ball Material

440C Stainless Steel

Pin Material

17-4PH Stainless Steel

Finish

Passivated (Shank, Spindle, Collar);Black (Handle);Anodized (Button)

Lock Type

Ball

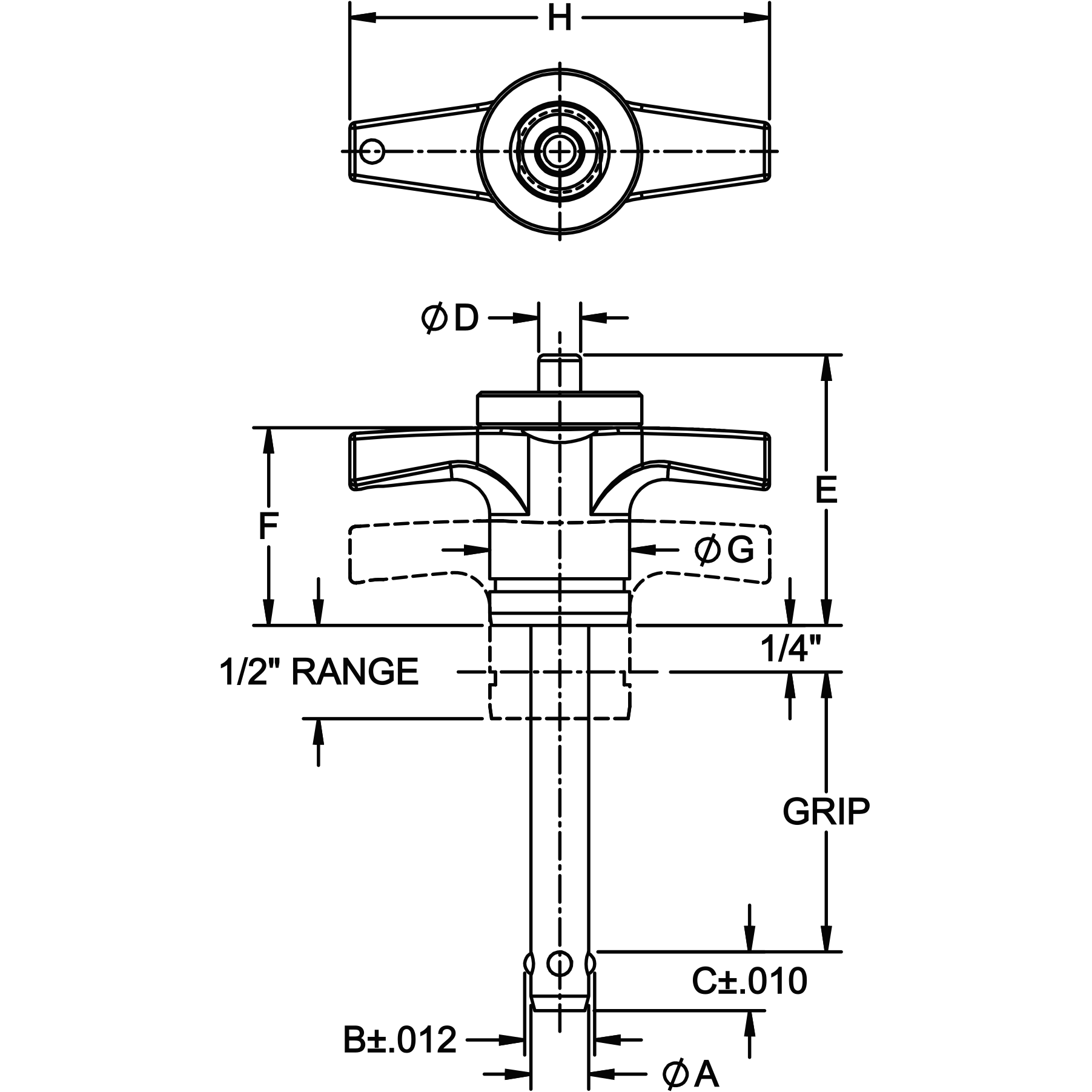

Tip to Ball Length (C)

0.655 in

Push Button Diameter (D)

0.5 in

Neck to Head Length (E)

2.07 in

Neck to Shoulder Length (F)

1.38 in

Neck Diameter (G)

1.31 in

Overall Height (H)

3.5 in

Standards Met

DFARS;RoHS Compliant

Spindle Material

17-4PH Stainless Steel

Knob Handle Material

319 Aluminum Alloy

Head and Locknut Material

300 Stainless Steel

Button Material

Aluminum Alloy

Actual Diameter (A)

0.7485/0.7470 in
