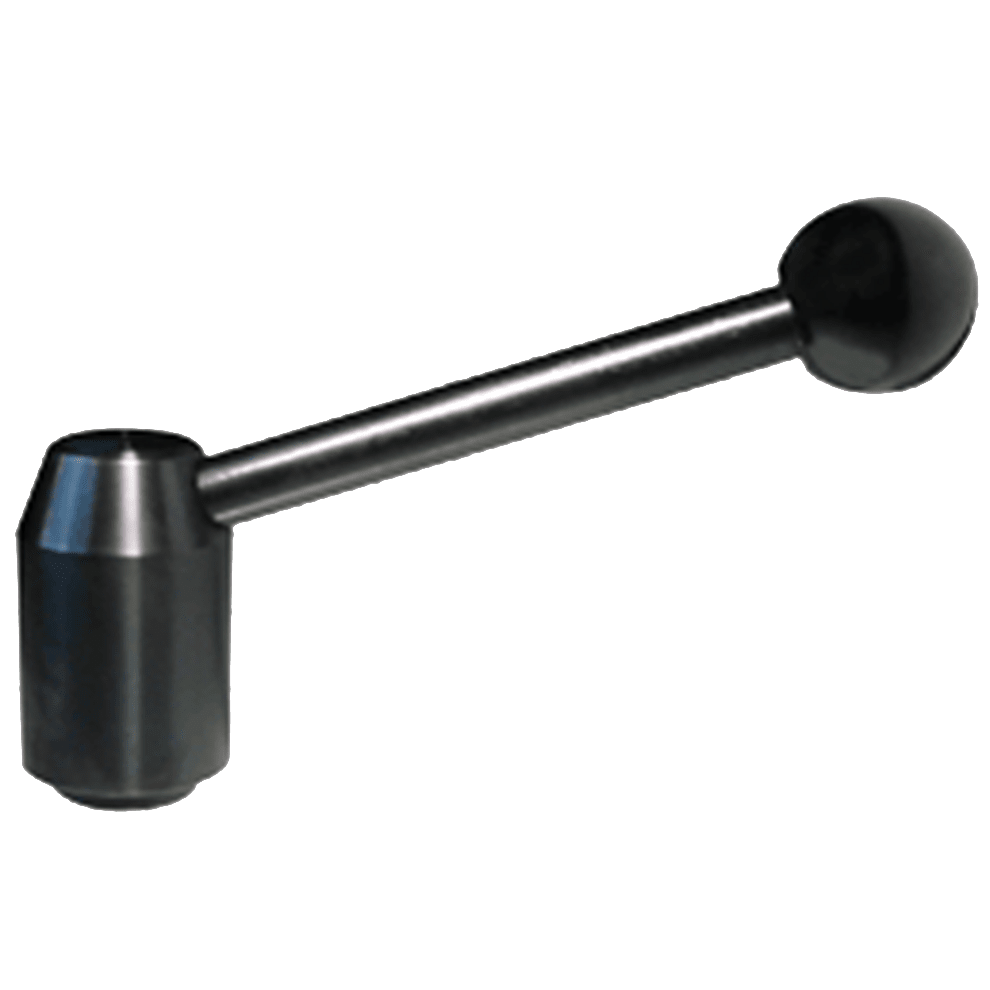

Adjustable Lever Handle – Tapped (Steel)

Adjustable Lever Handle – Tapped (Steel)

$36.29


Brand: Carr Lane

Adjustable Lever Handle – Tapped (Steel)

SKU: CL-6-AHL-3 Category:

Description

Heavy-duty adjustable handle that can be reset to any angle. Ideal for clamping in a confined space, or when a specific handle position is desired. Rugged spring-loaded spline mechanism. Adjustable handles are available in a total of six sizes. This version, with all-steel construction, is available in the largest four of the six sizes, with tapped holes from 3/8-16 to 3/4-10 (M10 to M20 in metric): Size 3 Size 4 Size 5 Size 6

Additional information

Product Type

Size

Size 3

Thread Size

3/8 in – 16

Material

Mild Steel (Level Arm, Hub and Insert);Spring Steel (Spring);Phenolic Plastic (Ball Knob)

Finish

, ,

Mounting Type

Tapped

Handle Length (A)

3.94 in

Head Diameter (B)

0.94 in

Handle Width (C)

0.39 in

Head Width (D)

1.57 in

Hub Diameter (G)

0.63 in

Hub Length (H)

0.1 in

Color

Black

Minimum Clamping Height (L)

2.95 in

Standards Met

DFARS;RoHS Compliant

Dimension (J)

0.55 in

Knob Diameter (N)

0.98 in

Travel (P)

0.18 in
