Air-Powered Toggle Clamp – CL-500-PTC Series (200 lbs)

Air-Powered Toggle Clamp – CL-500-PTC Series (200 lbs)


Brand: Carr Lane

Air-Powered Toggle Clamp – CL-500-PTC Series (200 lbs)

SKU: CL-500-PTC Category:

Description

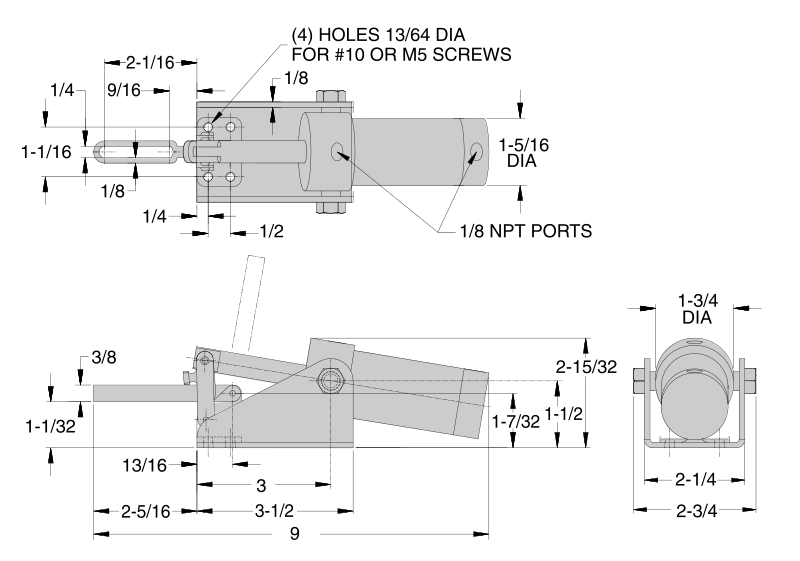

Small-yet-powerful air clamp with a long open arm. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. The clamping arm opens 100°. Slotted open arm provides adjustable spindle location. 200 lbs holding capacity. This clamp is operated by a 1-1/4″-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/8-NPT ports. 100-psi maximum input air pressure exerts 200 lbs maximum clamping force at the center of the arm.

Additional information

Product Type

Air-Powered Toggle Clamp

Maximum Holding Capacity

200 lb

Clamping Force

200 lb

Maximum Air Inlet Pressure

100 psi

Material

1008 Steel;1010 Steel;1018 Steel (Clamp Body);Steel and Aluminum (Air Cylinder);400 Stainless (Rivets)

Finish

Zinc Plated Clear Chromate

Standards Met

DFARS;RoHS Compliant
