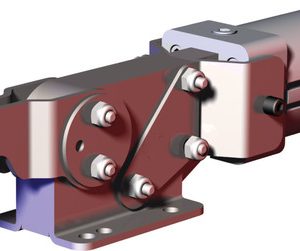

Air-Powered Toggle Clamp – CL-3000-PTC (5000 lbs)

Air-Powered Toggle Clamp – CL-3000-PTC (5000 lbs)


Brand: Carr Lane

Air-Powered Toggle Clamp – CL-3000-PTC (5000 lbs)

SKU: CL-3000-PTC-LC Category:

Description

Solid Arm Heavy-duty air clamp with a solid steel clamping arm. Similar to a vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. Clamping arm opens 83°. Solid arm can be tapped to accept a spindle, or otherwise modified. 5000 lbs holding capacity.This clamp is operated by a 2-1/2″-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/4-NPT ports. 100-psi maximum input air pressure exerts 1600 lbs maximum clamping force at center of arm.

Additional information

Product Type

Air-Powered Toggle Clamp

Maximum Holding Capacity

5000 lb

Clamping Force

1600 lb

Maximum Air Inlet Pressure

100 psi

Material

Mild Steel (Handle, Clamping arm, side plates, links and base plate);Steel and Aluminum (Air Cylinder);400 Stainless (Rivets)

Finish

Black Oxide

Standards Met

DFARS;RoHS Compliant
