Ball Detent

Ball Detent

$7.51


Brand: Carr Lane

Ball Detent

SKU: CL-8-BD Category:

Description

Press-in receptacle that provides a perfect mating hole for a Ball Plunger. The 90° point provides smooth detent action and reliable retention. These hardened receptacles resist side loads to prevent wear to the parent material. Available in sizes to fit all Ball Plungers, from #4-48 to 5/8-11 (M4 to M12 in metric). Made in USA.

Additional information

Product Type

For Ball Plungers With Body Thread

1/2 in – 13;M 12

Material

440 Stainless Steel

Standards Met

DFARS;RoHS Compliant

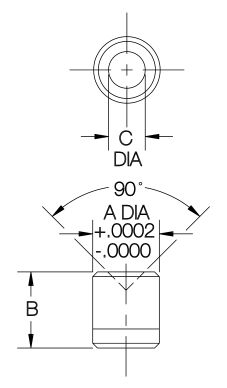

Dimension (A)

0.4378 in

Dimension (B)

1/2 in

Dimension (C)

0.241 in
