Ball Plunger

Ball Plunger

$19.12


Brand: Carr Lane

Ball Plunger

SKU: CLM-16-SBP-1 Category:

Description

Self-contained ball-and-spring device available in many sizes and forces. The version shown here has a stainless steel body for extra corrosion resistance, and a 440C stainless steel ball. Available in a wide range of thread sizes from #4-48 to 5/8-11 (M3 to M16 in metric), most with a choice of light, medium, or heavy spring force. Made in USA. Install and/or adjust from either end. When using the slot at the ball end to install, use a Plunger Wrench instead of a screwdriver to avoid over-compressing the spring (see Related Products below). Note: the smallest sizes (#4-48, #5-40, #6-40, and M3) have no slot at the ball end. A thread-locking element holds the unit securely in place after installation.

Additional information

Product Type

Thread Size

M16

End Force

Medium

Initial End Force

40 N

Final End Force

80 N

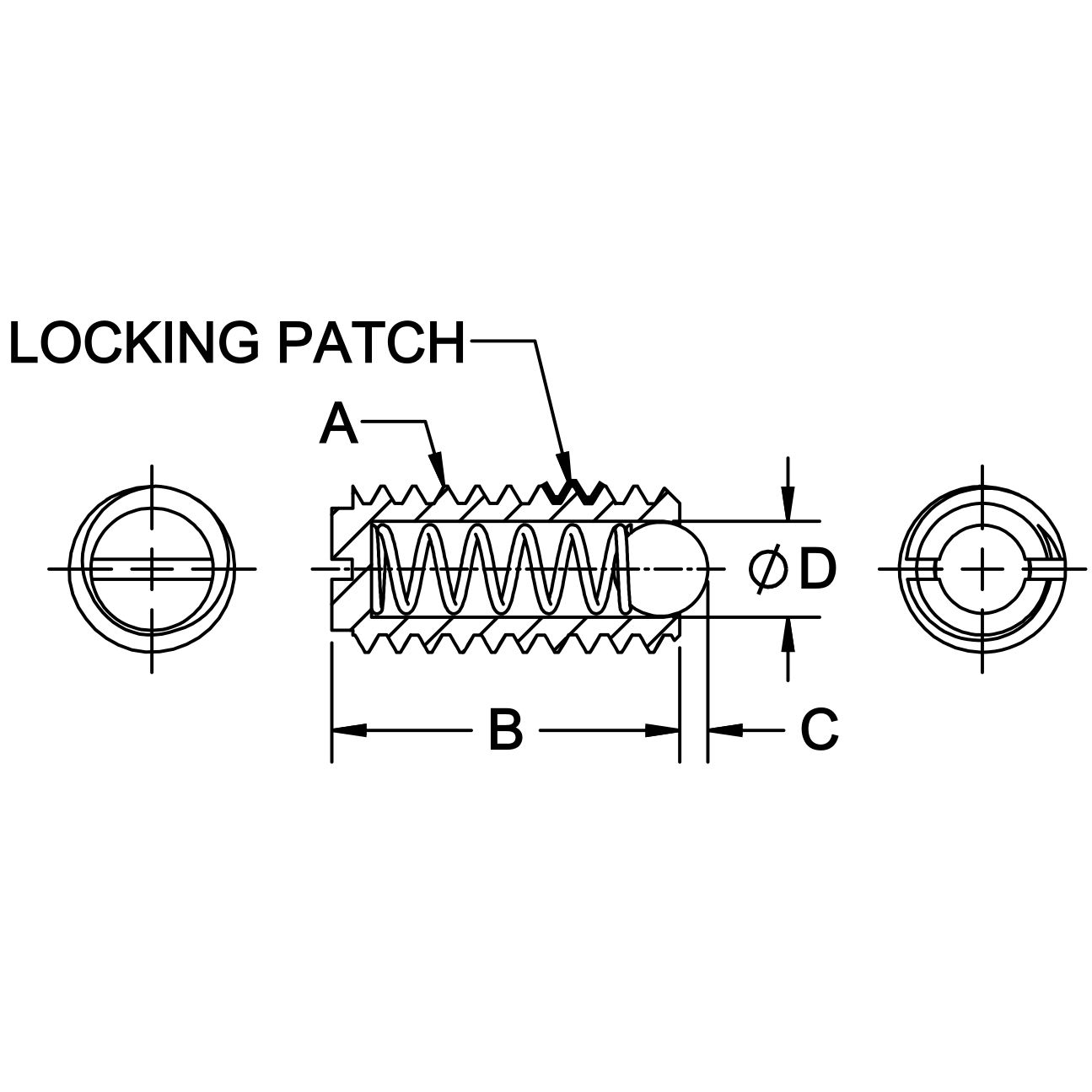

Exposed Length (C)

2.5 mm

Material

300-Series Stainless Steel

Nose Diameter (D)

9.5 mm

Thread Pitch

2 mm

Length (B)

25 mm

Standards Met

DFARS;RoHS Compliant
