Cam Edge Clamp (Fixed Base)

Cam Edge Clamp (Fixed Base)

$168.64


Brand: Carr Lane

Cam Edge Clamp (Fixed Base)

1 in stock

SKU: CL-MF40-5601 Category: Tag:

Description

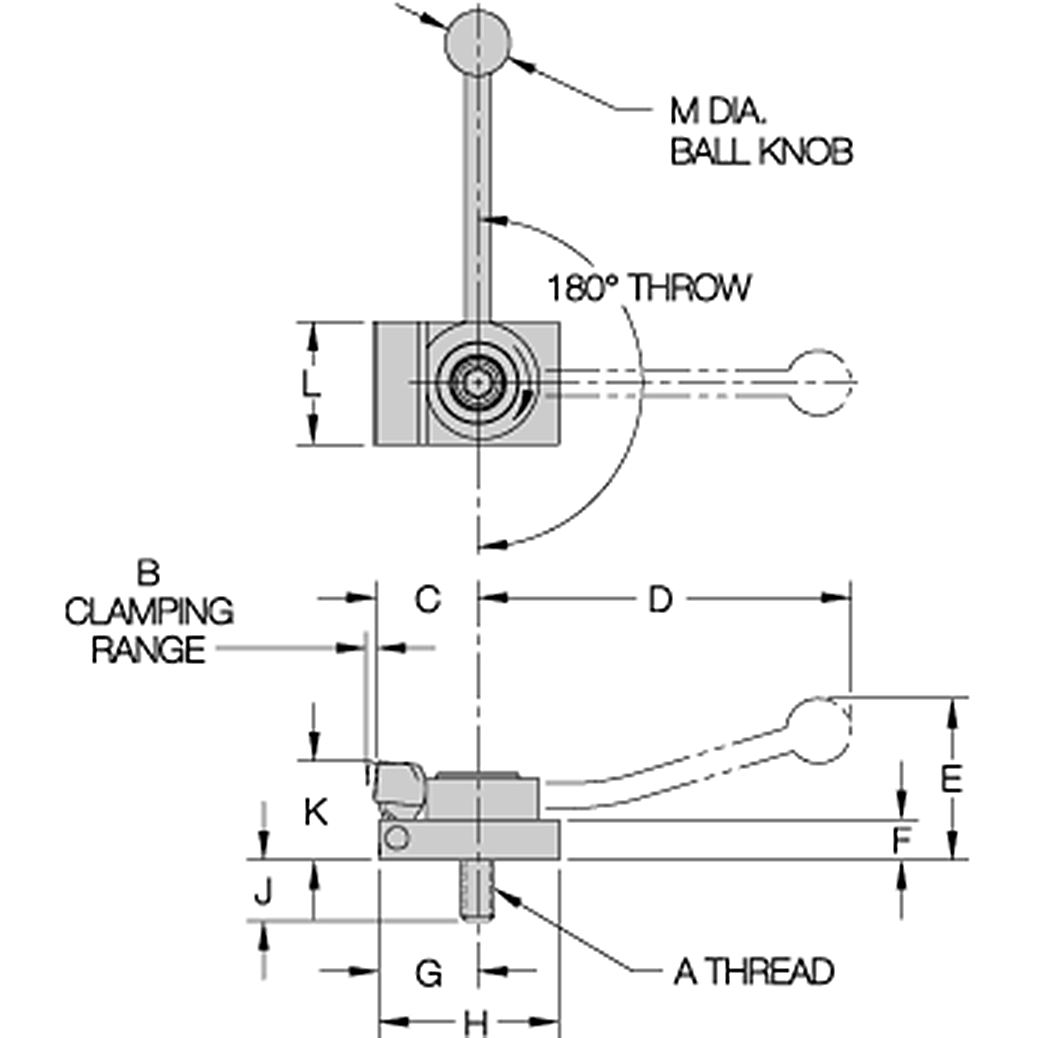

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. Choice of clockwise or counterclockwise handle movement to clamp. Available in two sizes, with 5/16-18 or 1/2-13 mounting screws (M8 or M12 in metric).The fixed-base version shown here mounts in a fixed location with the built-in screw. Well suited for permanent fixtures due to its compact size and fixed position. Also available in a slotted-base version for adjustability.

Additional information

Product Type

Clamping Range

7/32 in
Ball Knob Diameter

1 in
Handle Length (D)

5-3/4 in
Maximum Clamping Clearance (E)

2-1/2 in
Mounting Screw Size

1/2 in – 13
Clamping Direction

Clockwise
Maximum Horizontal Clamping Force

1500 lb
Maximum Vertical Clamping Force

100 lb
Material

Steel (Body);Black Phenolic Plastic (Ball Knob)
Finish

Black Oxide
Overall Length (H)

2-3/4 in
Overall Width (L)

1-7/8 in
Standards Met

DFARS;RoHS Compliant
Dimension (C)

1-9/16 in
Dimension (G)

1-1/2 in
Dimension (F)

5/8 in
Dimension (J)

15/16 in
Dimension (Min K)

1-5/16 in
Dimension (Max K)

1-1/2 in
