Description

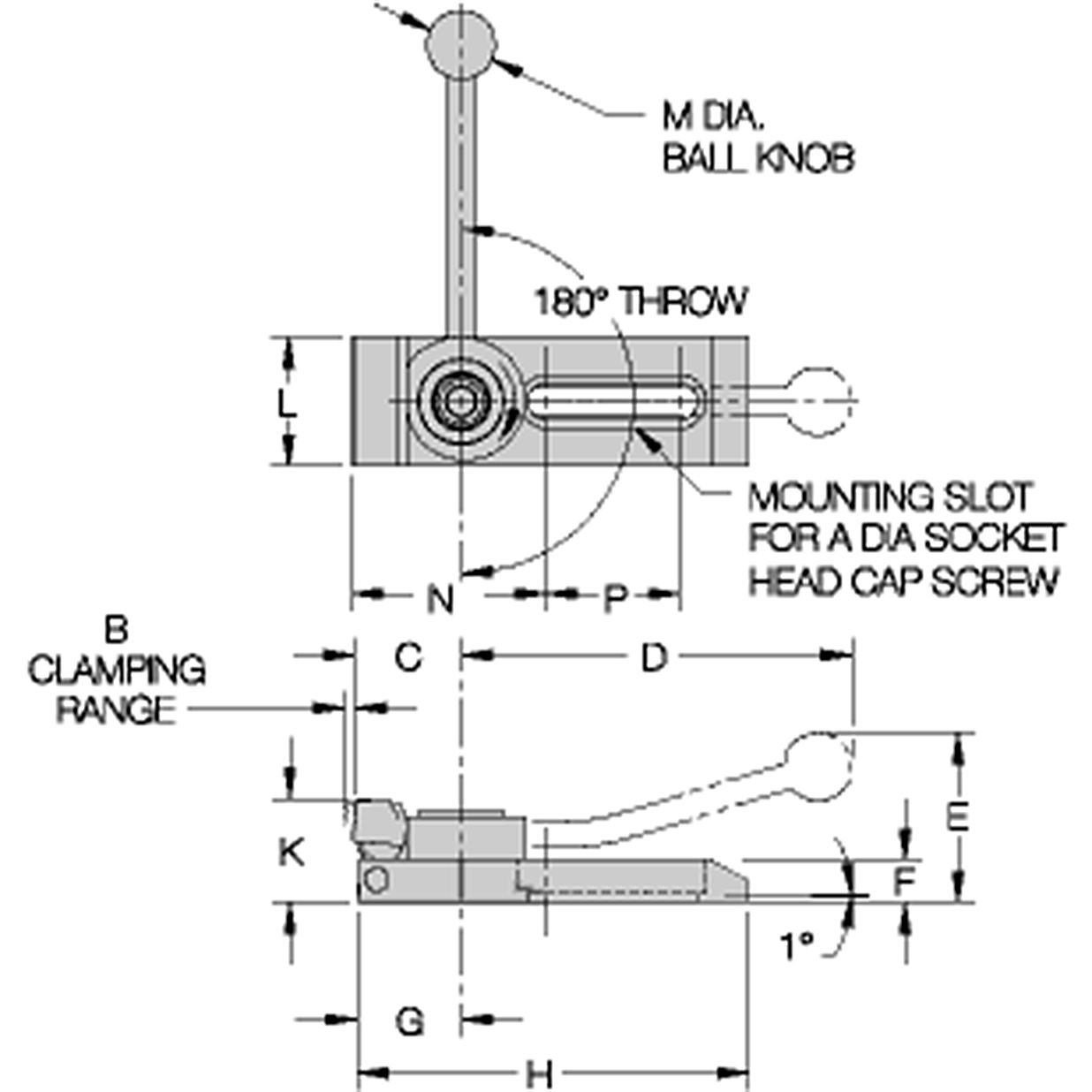

Pivoting-nose edge clamp actuated by a cam handle for fast action. The serrated nose pivots to exert clamping force forward and downward at the same time. Smooth spiral cam locks positively anywhere within its 180° throw. Choice of clockwise or counterclockwise handle movement to clamp. Available in two sizes, with a slot for 5/16-18 or 1/2-13 mounting screws (M8 or M12 in metric). The slotted-base version shown here provides adjustable clamp location. Ideal for mounting directly on T-slotted machine tables or modular tooling plates. Fasten with a socket-head cap screw (not furnished). Also available in a fixed-base version, well suited for permanent fixtures due to its compact size and fixed position.
