$30.10
Cam Handle
Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position. Available to fit Eye Bolt sizes from 1/4-20 to 3/4-10 (M6 to M20 in metric). Order matching clevis pin separately below.
| Product Type | |
|---|---|
| Thread Size | 1/4 in – 20 |
| Nominal Diameter | 3/16 in |
| Material | Mild Steel |
| Finish | |
| Color | Black |
| For Use With | Eye Bolt or Custom-Made Drawbar |

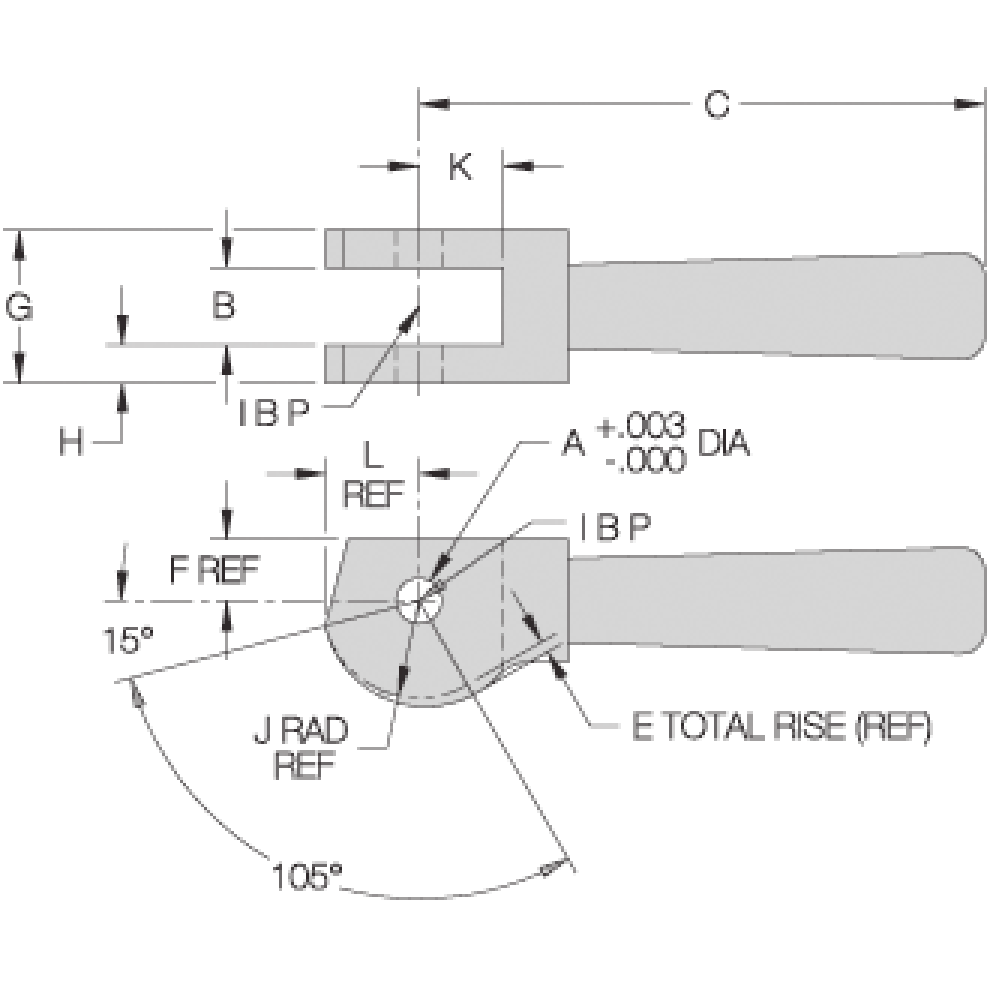

| Overall Length (C) | 2-17/32 in |
| Standards Met | DFARS;RoHS Compliant |
| Dimension (E) | 0.046 in |
| Nominal Dimension (B) | 1/4 in |
| Dimension (F) | 1/4 in |
| Dimension (G) | 5/8 in |
| Dimension (H) | 3/16 in |
| Dimension (J) | 0.4 in |
| Dimension (K) | 0.33 in |
| Dimension (L) | 0.38 in |
