Carr Lock Back-Mount Receiver Bushing

Carr Lock Back-Mount Receiver Bushing

$104.08


Brand: Carr Lane

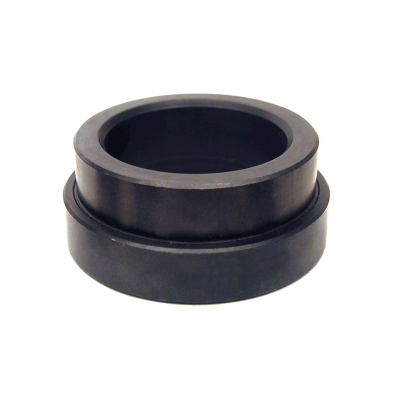

Carr Lock Back-Mount Receiver Bushing

SKU: CL-50-CLBR Category:

Description

The Carr Lock® System requires that each Carr Lock® Clamp be used together with a Carr Lock® Receiver Bushing – either the back-mount type shown here, or the face-mount type. The clamp’s locking balls engage the angled ID section of the Receiver Bushing, pulling the clamp firmly downward. Back-Mount Receiver Bushings are installed in the subplate from below, with a slight press fit. Made in USA. Back-Mount Receiver Bushings are available for all Carr Lock® Clamp shank diameters: 13mm 16mm 20mm 25mm 30mm 35mm 50mm

Additional information

Product Type

Inside Diameter

50 mm

Diameter (K)

2.6269/2.6265 in

Counter Bore Diameter (N)

2.937 in

Minimum Subplate Thickness (M)

1.8 in

Material

4340 Steel

Finish

Black Oxide

Depth (P)

0.621 to 0.619 in

Height (B)

1.225 in

Standards Met

DFARS;RoHS Compliant

Hole Diameter

2.963/2.973 in
