Construction Ball – Adjustable Type (3/8″ Ball)

Construction Ball – Adjustable Type (3/8″ Ball)

$26.57


Brand: Carr Lane

Construction Ball – Adjustable Type (3/8″ Ball)

Description

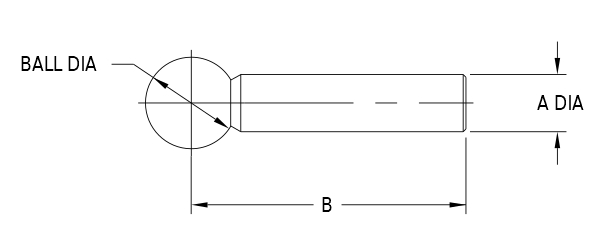

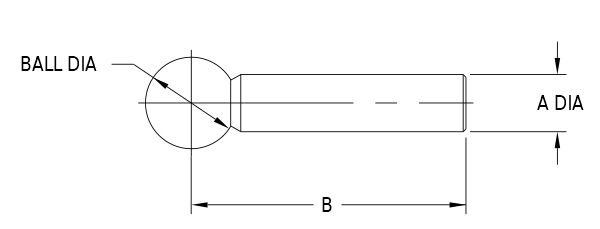

CL-00-CB Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Adjustable type has no shoulder, so it can be set at any desired height then locked with a setscrew. Concentricity between ball and shank is .0002″ TIR. These Construction Balls are available with 1/4, 3/8, and 1/2″ ball sizes. The 3/8″ ball size is shown here. Made in USA.

Additional information

Product Type

Nominal Diameter

3/16 in

Shank Diameter

0.1875 in

Shank to Ball Center Length

0.75 in

Material

Stainless 1215 steel;1215 steel

Hardness

Rc 54-56

Standards Met

DFARS;RoHS Compliant

Nominal Ball Diameter

3/8 in

Actual Ball Diameter

0.3750/0.3747 in
