Double-End Jig Feet

Double-End Jig Feet

$39.22


Brand: Carr Lane

Double-End Jig Feet

SKU: CL-11-DEJF Category:

Description

Tapped jig foot, commonly used in pairs with a Clamping Stud between them. Also useful as a machine foot. Available in one body size, in heights from 1 to 8″ tall (30 to 100mm in metric). Made in USA.

Additional information

Product Type

Thread Size

5/8 in – 11

Finish

Black Oxide

Material

1215 Steel

Standards Met

DFARS;RoHS Compliant

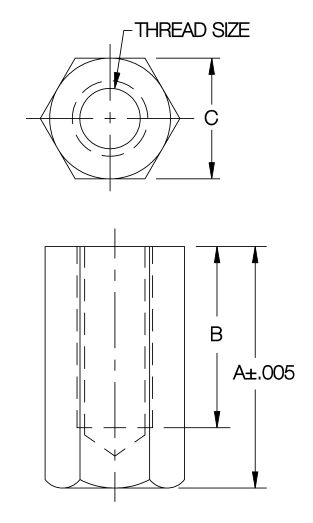

Dimension (A)

8 in

Dimension (B)

1-1/2 in

Dimension (C)

1 in
