Description
High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.
Forged Anchor Shackle
$32.84
Brand: Carr Lane
Forged Anchor Shackle
Additional information

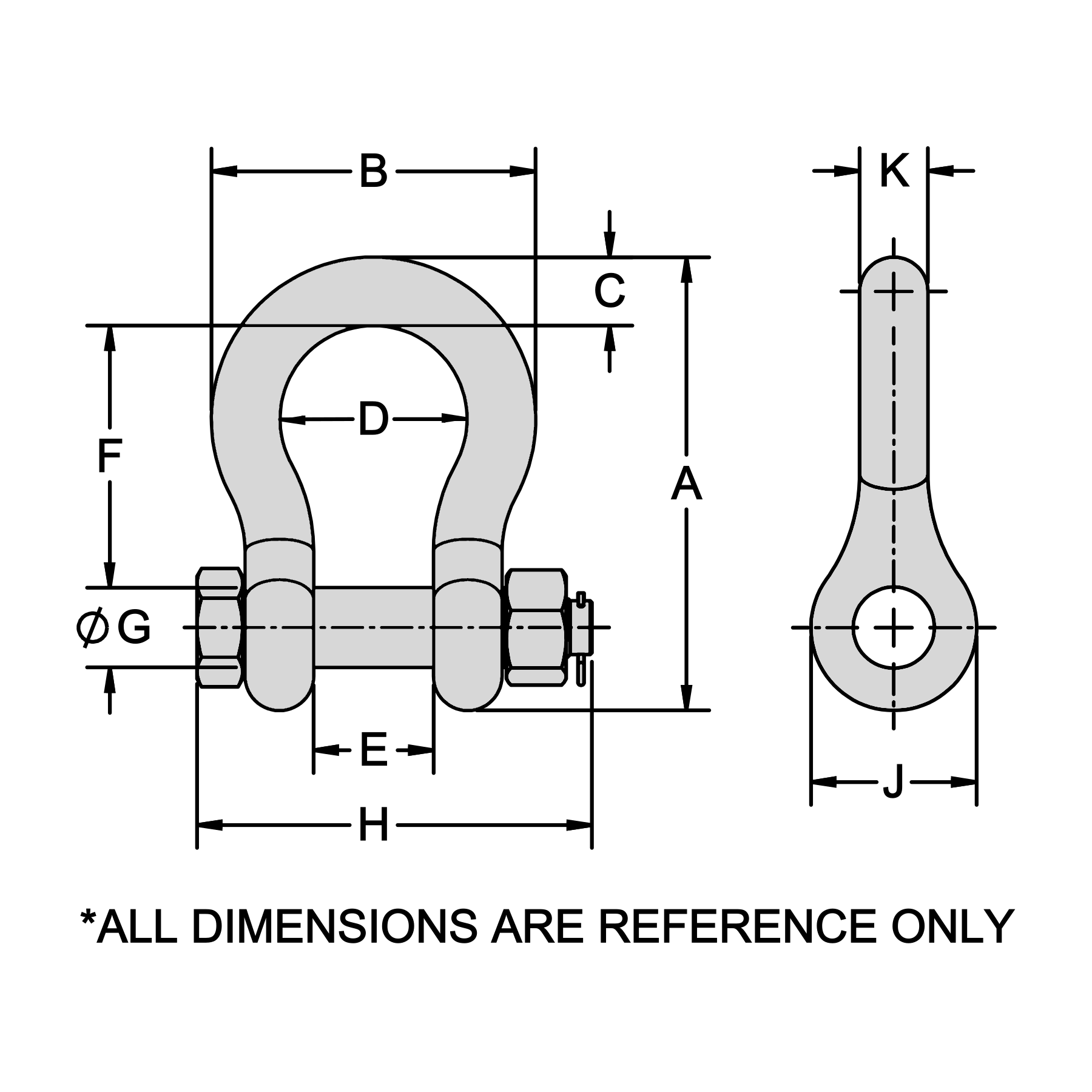

| Product Type | Forged Anchor Shackle |
|---|---|
| Maximum Load Rating | 2000 lb |
| Nominal Shackle Size | 3/8 in |
| Shackle Diameter | 0.38 in |
| Material | Alloy Steel |
| Jaw Opening (E) | 0.66 in |
| Finish | Black Oxide |
| Inside Height (D) | 1.03 in |
| Inside Width (F) | 1.44 in |
| Pin Diameter (Dia G) | 0.44 in |
| Outside Width (B) | 1.78 in |
| Ear Height (H) | 2.17 in |
| Ear Width (J) | 0.91 in |
| Bow Diameter (K) | 3/8 in |
| Overall Height (A) | 2.49 in |
| Standards MET | DFARS;RoHS Compliant |
