Forged Anchor Shackle

Forged Anchor Shackle

$158.53


Brand: Carr Lane

Forged Anchor Shackle

SKU: CL-36561-FAS Category:

Description

High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.

Additional information

Product Type

Maximum Load Rating

19000 lb

Nominal Shackle Size

1-1/8 in

Shackle Diameter

1.25 in

Material

Alloy Steel

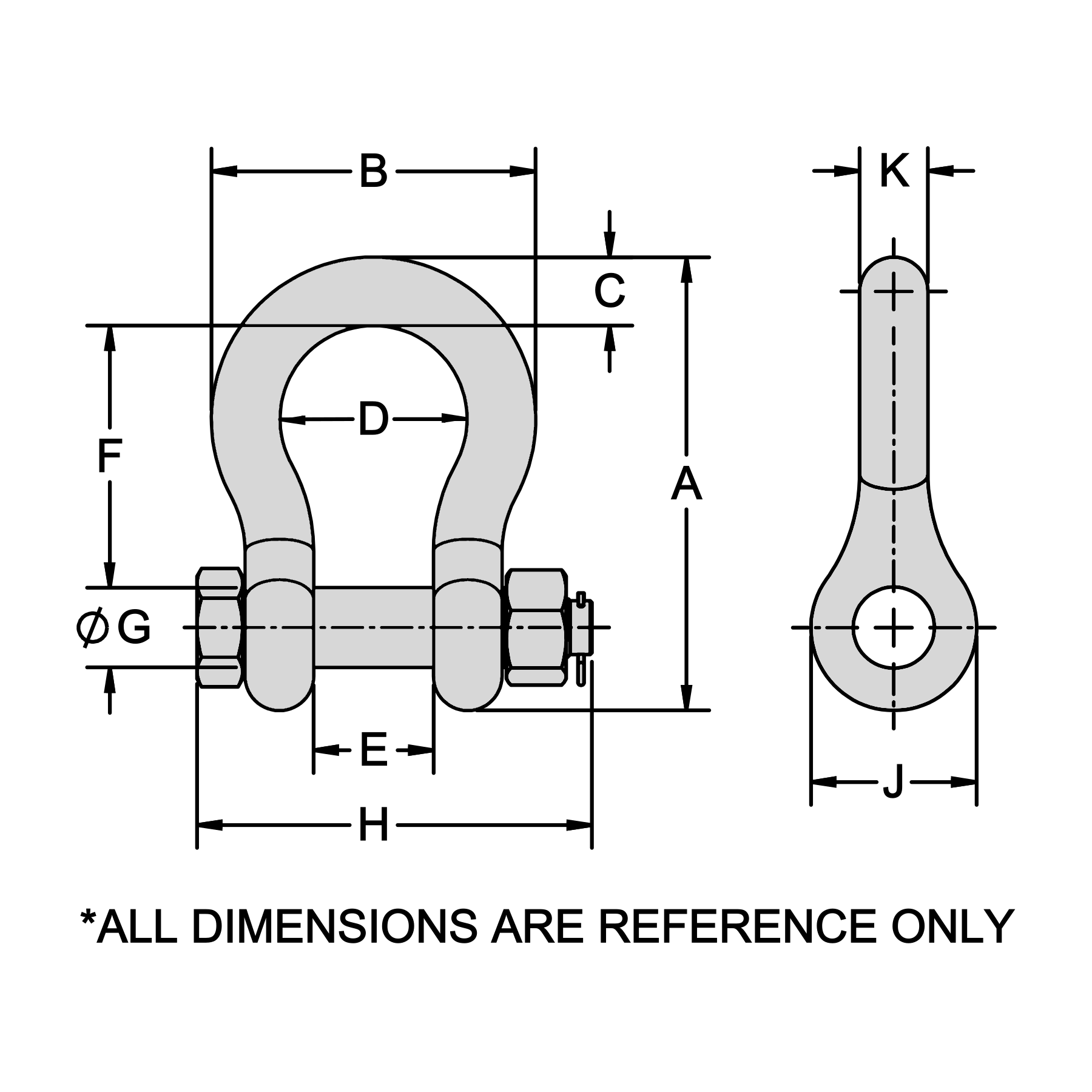

Jaw Opening (E)

1.81 in

Finish

Black Oxide

Inside Height (D)

2.91 in

Inside Width (F)

4.25 in

Pin Diameter (Dia G)

1.25 in

Outside Width (B)

5.16 in

Ear Height (H)

5.09 in

Ear Width (J)

2.69 in

Bow Diameter (K)

1-1/8 in

Overall Height (A)

7.47 in

Standards MET

DFARS;RoHS Compliant
