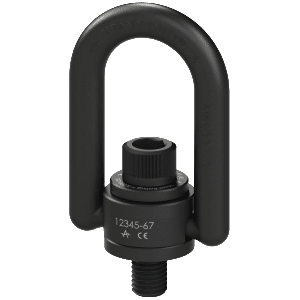

Heavy-Duty Hoist Ring

Heavy-Duty Hoist Ring

Heavy-Duty Hoist Ring - Image 2

Heavy-Duty Hoist Ring

$79.39

Brand: ADB

Heavy-Duty Hoist Ring

SKU: 33112 Category: Heavy Duty Hoist Rings

Description
Technical Specification

Description

Complete Line Through 55,000 Pound Working Load Limits.

Material: Forged High Strength 4140 alloy steel
Range of movement: Swivel 360°, Pivot 180° Under Load
Design Factor: Minimum of 5:1
Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209
Magnetic Particle Inspected Per ASTM 1444
Black oxide coated
Each Individually Serial Numbered

Additional information

Product Type	Heavy-Duty Hoist Ring
Maximum Load Rating	550 lb
Thread Size	1/4 in – 20
Thread Length	0.56 in
Material	Alloy Steel
Finish	Black Oxide
Range of Movement	Swivel 360°;Pivot 180° Under Load
Safety Factor	5:1
Bail Radius (A)	0.65 in
Bail Diameter (D)	0.44 in
Bail Outside Length (F)	3.23 in
Bail Inside Length (M)	1.57 in
Bushing Width (K)	1.25 in
Bushing Height (L)	0.15 in
Overall Width (A)	2.29 in
Weight	0.50 lb
Standards Met	MIL-STD 209;ANSI/ASME B30.26
Tensile Strength	5 lb
Body Height (C)	0.96 in
