Horizontal V Block

Horizontal V Block

$461.99


Brand: Carr Lane

Horizontal V Block

SKU: CL-MF40-6002 Category:

Description

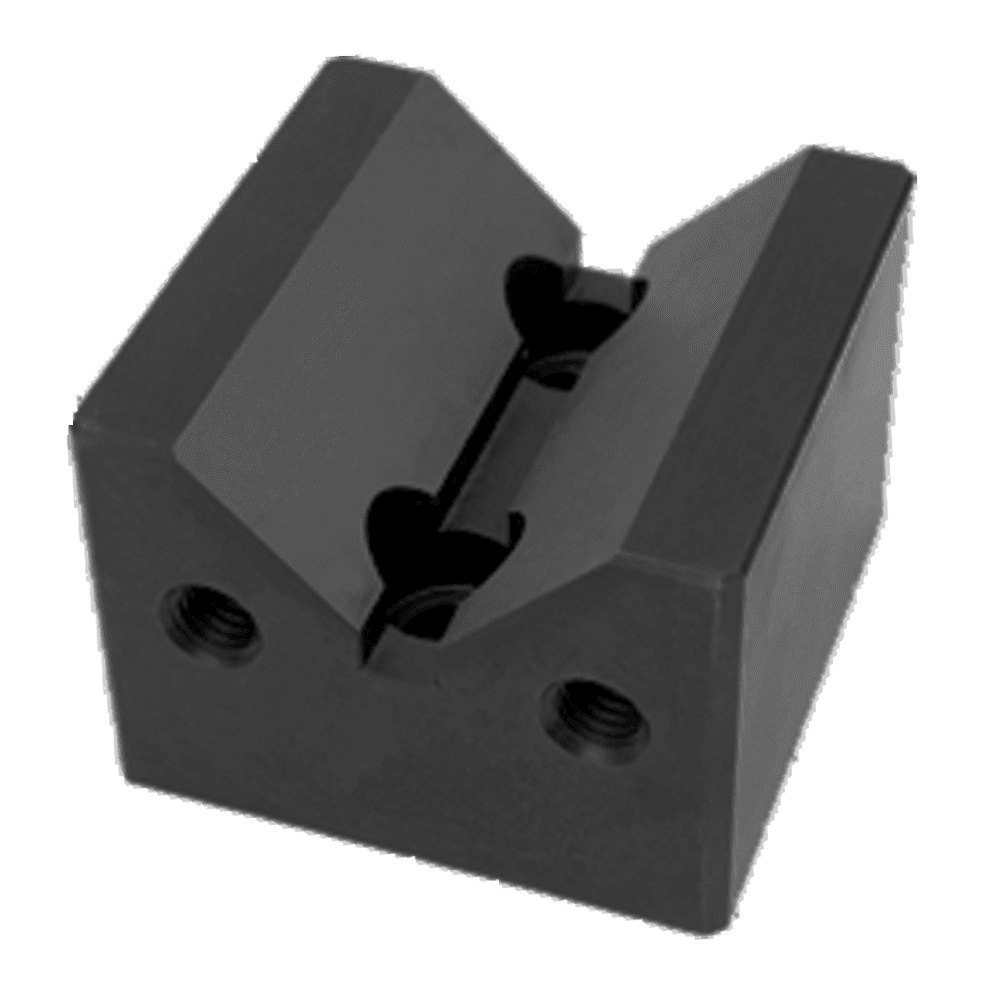

Extremely versatile locator for cylindrical workpieces. Locating surfaces are precision ground and accurately qualified in relation to the mounting holes. Two tapped holes on the end can be used to mount stops or clamps. The Standard MF40 size shown here is available in two block sizes, for small or large workpiece diameters.

Additional information

Product Type

Size

Large V

Material

1045 Steel

Bushing Material

High-Carbon Steel

Centerline Height (B)

1.5858 in

Finish

Black Oxide

Dimension (H)

3-3/8 in

Dimension (E)

1-1/8 in

Mounting Screw Size

1/2 in – 13

For Maximum Workpiece Diameter (D)

1/2 in – 13

Mounting Hole Centerline Distance (F)

2 in

Width (G)

3-3/8 in
