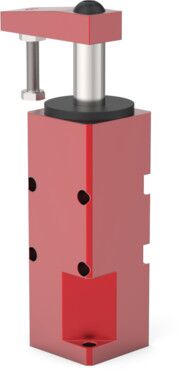

Block Style Pneumatic Swing Clamp

Block Style Pneumatic Swing Clamp

$480.84


Brand: Destaco

Block Style Pneumatic Swing Clamp

1 in stock

SKU: 8116 Category: Tag:

Description

  • Sensor ready
  • Clamping arm and spindle included. Available with out clamping arm, specify -LA
  • Left hand swing

Additional information

Product Type

Clamp Stroke

0.38 in

Cylinder Bore Size

0.75 in

Clamping Force

18 lbf

Rotary Stroke

0.85 in

Swing Direction

LH

Air Port Size

#10-32

Air Consumption

0.002 cu in double stroke at 7 psi

Stroke During Rotation

0.47 in

Sensor (Yes/No)

Yes

Mounting Type

Block Style – Side or Top Mount

Length

3.9 in

Width

1.25 in

Height

1.25 in

Weight

0.68 lb
