Description
- Lightweight and robust, designed for several million cycles
- Clamp arms and accessories sold separately
- Maximum operating pressure 8 bar (120 psi)

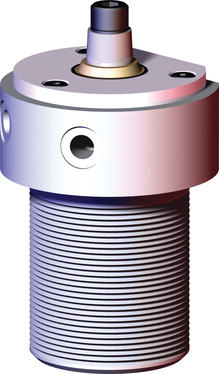

Threaded Body Style Pneumatic Swing Clamp
$624.48
Brand: Destaco
Threaded Body Style Pneumatic Swing Clamp
1 in stock
Additional information
| Product Type | |
|---|---|
| Clamp Stroke | 0.39 in |
| Cylinder Bore Size | 0.79 in |
| Clamping Force | 29 lbf |
| Rotary Stroke | 0.79 in |
| Swing Direction | RH |
| Air Port Size | M5 |
| Air Consumption | 0.08 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.39 in |
| Sensor (Yes/No) | No |
| Mounting Type | Threaded (Body) |
| Length | 3.83 in |
| Width | 1.89 in |
| Height | 1.89 in |
| Weight | 0.64 lb |
