Push/Pull Toggle Clamp – CL-100-SPC Series (300 lbs)

Push/Pull Toggle Clamp – CL-100-SPC Series (300 lbs)

$92.57


Brand: Carr Lane

Push/Pull Toggle Clamp – CL-100-SPC Series (300 lbs)

Description

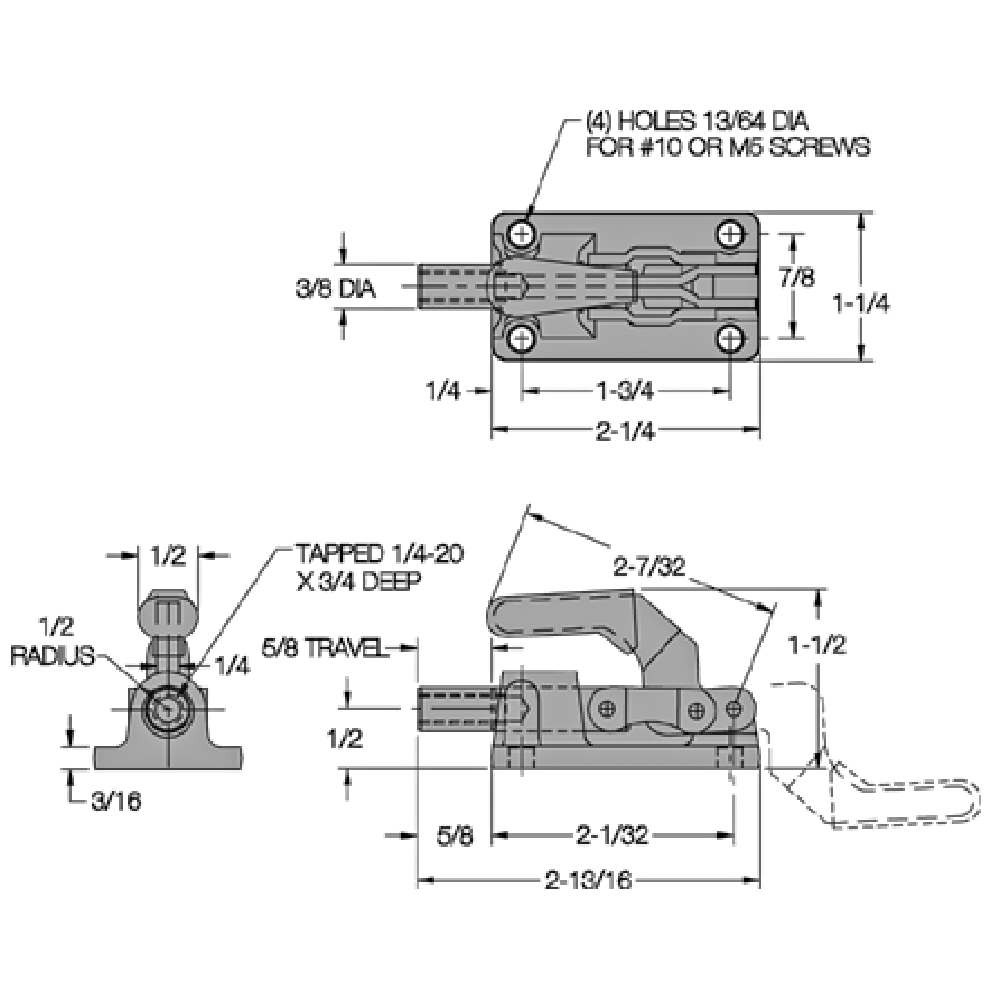

CL-100-SPCTapped PlungerTiny yet extremely powerful plunger clamp with a forged steel base. Requires very little mounting space due to its narrow base and compact low profile. Locks in extended or retracted position. 5/8″ plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). Available in in steel or stainless steel. Optionally available with our safety-lock feature (see Related Products below). 300 lbs holding capacity.

Additional information

Product Type

Maximum Holding Capacity

300 lb

Plunger Travel

5/8 in

Plunger Thread

1/4 in – 20

Material

1215 Steel (Clamp Body);1008 Steel (Clamp Body);1010 Steel (Clamp Body);1018 Steel (Clamp Body);400 Stainless (Rivets);Vinyl (Handle);Forged Steel (Base);300 Stainless (Clamp Body)

Handle Material

Vinyl

Finish

Zinc Plated Clear Chromate (Clamp Body);Zinc Plated Chromate (Base)

Mounting Type

Flanged

Thread Size

1/4 in – 20

Standards Met

DFARS;RoHS Compliant
