Round Pin

Round Pin

$13.57


Brand: Carr Lane

Round Pin

SKU: CLM-200-RP Category:

Description

Round locating pins are precision engineered with a chamfered tip for easy part loading, and a shoulder to resist downward forces – important advantages over standard dowel pins. One Round locating Pin and one Diamond Pin are often used together to locate from two machined holes in a workpiece, or to align two pieces of a fixture, without binding. Round Locating Pins are also extremely useful as side locators. Head and shank diameters on round locating pins are concentric to within .0005″ TIR. Available with head diameters from 1/4 to 1″ (6 to 20mm in metric). Carr Lane round locating pins are proudly made in USA.

Additional information

Product Type

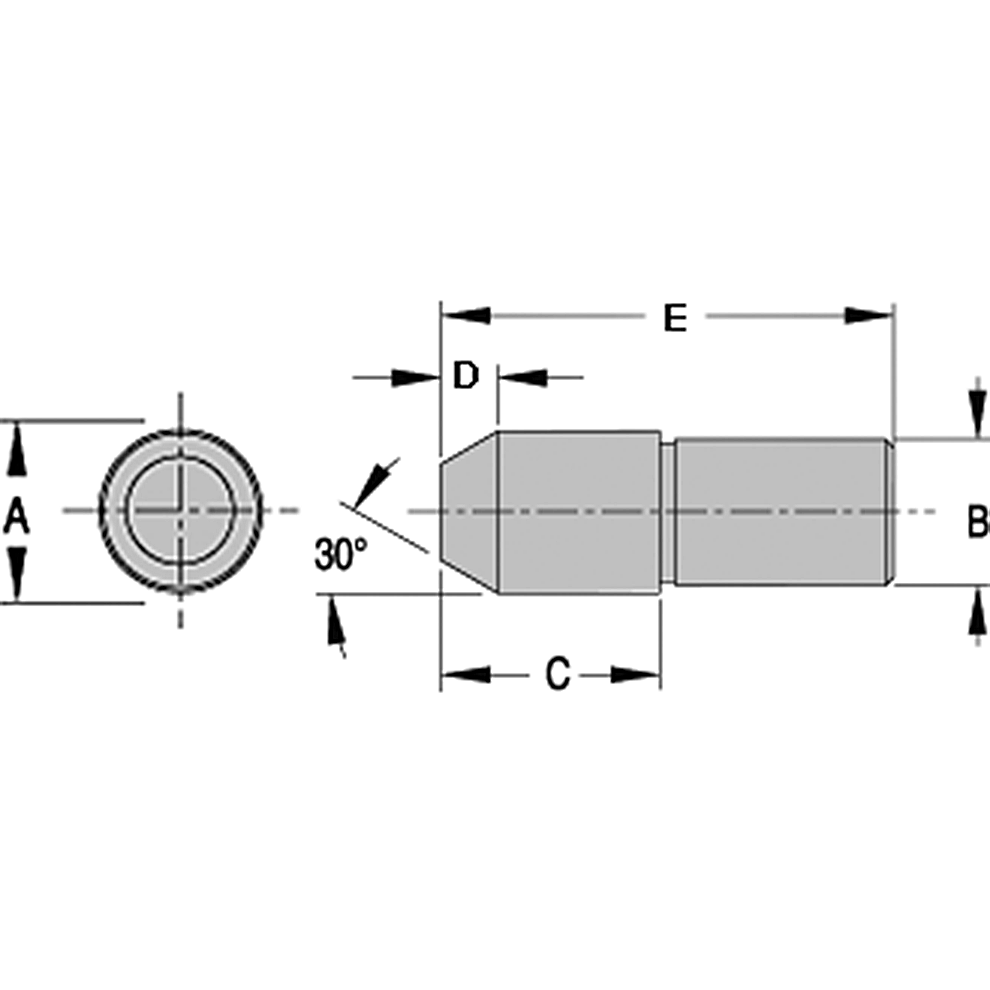

Head Diameter (A)

20 mm

Shank Diameter (B)

18 mm

Material

1144 Steel

Finish

Black Oxide

Hardness

Heat Treated Rc 50-55

Tip Shape

Round

Height (E)

57 mm

Standards Met

DFARS;RoHS Compliant

Dimension (D)

7 mm

Tool Working Length (C)

28 mm
