Construction Ball – Shoulder Type (1/4″ Ball)

Construction Ball – Shoulder Type (1/4″ Ball)

$35.74


Brand: Carr Lane

Construction Ball – Shoulder Type (1/4″ Ball)

Description

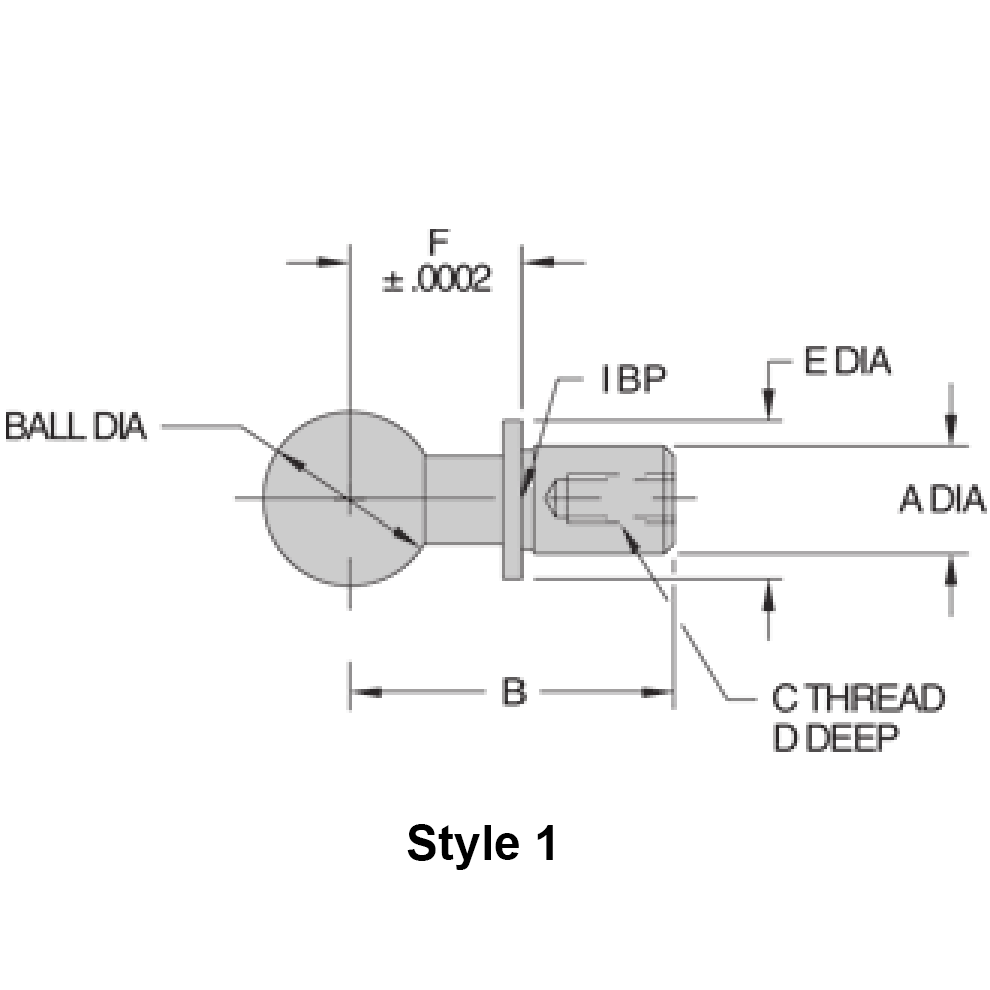

Now also available in stainless steel! Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002″ TIR. Construction Balls are available with 1/4, 3/8, 1/2, and 3/4″ ball sizes (6, 12, and 20mm in metric). The 1/4″ ball size is shown here, in steel and stainless steel. Made in USA.

Additional information

Product Type

Nominal Diameter

1/8 in

Shank Diameter

0.1250 in

Shank to Ball Center Length

0.56 in

Shoulder to Ball Center Length (F)

0.2 in

Material

Stainless 1215 steel;1215 steel

Hardness

Rc 54-56

Standards Met

DFARS;RoHS Compliant

Nominal Ball Diameter

1/4 in

Actual Ball Diameter

0.2502/0.2498 in

Dimension (E)

0.25 in

Dimension (F)

0.2 in
