Construction Ball – Shoulder Type (1/2″ Ball)

Construction Ball – Shoulder Type (1/2″ Ball)

$36.33


Brand: Carr Lane

Construction Ball – Shoulder Type (1/2″ Ball)

SKU: CL-2-SCB Category: Tag:

Description

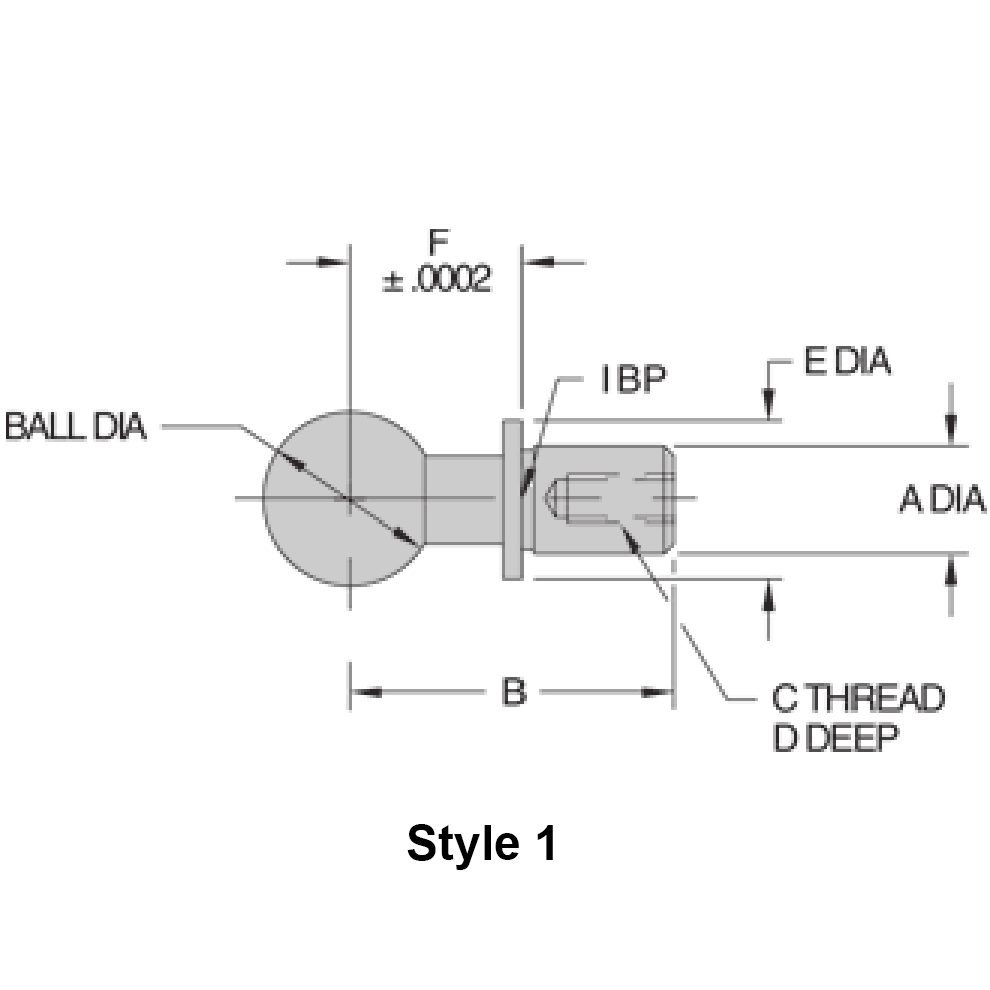

Now also available in stainless steel! Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002″ TIR. Construction Balls are available with 1/4, 3/8, 1/2, and 3/4″ ball sizes (6, 12, and 20mm in metric). The 1/2″ ball size is shown here, available in several shank diameters and lengths, in steel and stainless steel. Made in USA.

Additional information

Product Type

Thread Size

#6-32
Nominal Diameter

1/4 in
Shank Diameter

0.2500 in
Shank to Ball Center Length

0.94 in
Shoulder to Ball Center Length (F)

0.5 in
Material

Stainless 1215 steel;1215 steel
Thread Pitch (D)

5/16 in
Hardness

Rc 54-56
Standards Met

DFARS;RoHS Compliant
Nominal Ball Diameter

1/2 in
Actual Ball Diameter

0.5000/0.4997 in
Dimension (E)

0.46 in
Dimension (F)

0.5 in
