Key Insert – Solid, Stainless Steel (Inch)

Key Insert – Solid, Stainless Steel (Inch)

$215.56


Brand: Carr Lane

Key Insert – Solid, Stainless Steel (Inch)

SKU: CL-11812-KSS Category:

Description

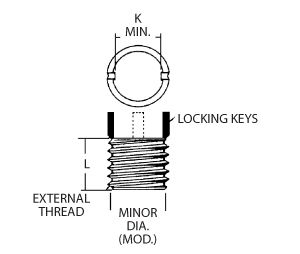

Solid Key Inserts are ideal for relocating a drilled or tapped hole. This threaded plug installs quickly, and the locking keys positively prevent the insert from rotating. Solid Key Inserts are available in a wide range of inch and metric external thread sizes. Inch sizes are shown here, ranging from 5/16-18 to 1-3/8″-12. Key Inserts are installed using standard drills and taps, but the required tap-drill size is slightly larger than normal for that OD thread size. See Installation Data table below for the appropriate tap-drill size.

Additional information

Product Type

External Thread Size

1-1/8 in – 12

Shear Engagement Area

2.49 sq in

Installation Method

Standard Drills and Taps

Material

303 Stainless Steel

Length (L)

1.12 in

Standards Met

DFARS;RoHS Compliant

Key Material

302 Stainless Steel

Dimension (Min K)

0.97 in
