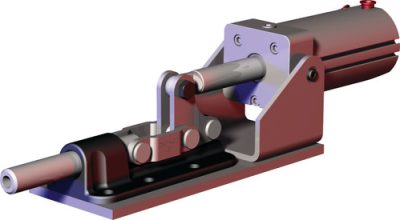

Pneumatic Straight Line Clamp

Pneumatic Straight Line Clamp

$637.71


Brand: Destaco

Pneumatic Straight Line Clamp

Description

  • Pneumatic version of Model 630 manual straight line action clamp
  • Sensor ready for round or T-slot style sensors
  • Built-in flow restriction eliminates need for external flow controls
  • Replacement Clamp Assembly: 830-M-LC

Additional information

Product Type

Maximum Holding Capacity

2500 lbf

Plunger Travel

1.25 in

Plunger Height

1.06 in

Plunger Thread

M10

Air Port Size

G-1/8

Air Consumption

0.029 cu ft

Duty Cycle

Fair/Medium

Cylinder Bore Size

1.57 in

Length

11.43 in

Width

3 in

Height

3.59 in

Operating Temperature Range

-14 to 194 °F

Weight

6.17 lb
