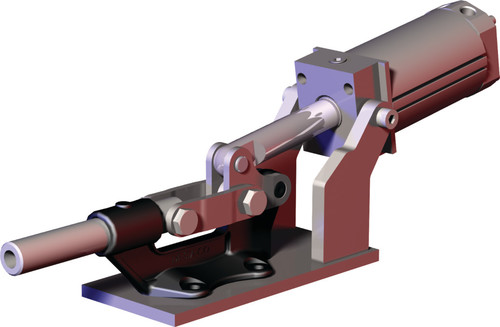

Pneumatic Straight Line Clamp

Pneumatic Straight Line Clamp

$888.00


Brand: Destaco

Pneumatic Straight Line Clamp

Description

  • Pneumatic version of Model 650 manual straight line action clamp
  • Sensor ready for round or T-slot style sensors
  • Built-in flow restriction eliminates need for external flow controls
  • Replacement Clamp Assembly: 850-LC

Additional information

Product Type

Maximum Holding Capacity

16000 lbf

Plunger Travel

2 in

Plunger Height

2.63 in

Plunger Thread

5/8 in – 11

Air Port Size

1/8 in NPT

Air Consumption

0.109 cu ft

Duty Cycle

Excellent/High

Cylinder Bore Size

2.48 in

Length

20.56 in

Width

4 in

Height

7.21 in

Operating Temperature Range

-14 to 194 °F

Weight

16.7 lb
