Description
- 4,000 lb. Capacity
- Can accept plunger strokes of 100 mm – 300 mm
- 4 mm clamping stroke

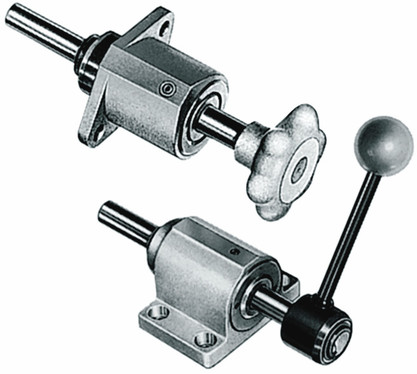

Variable Stroke Straight Line Action Clamp
$1,145.39
Brand: Destaco
Variable Stroke Straight Line Action Clamp
Additional information
| Product Type | |
|---|---|
| Maximum Holding Capacity | 4045 lbf |
| Plunger Travel | 3.94 in;7.87 in;11.81 in |
| Plunger Height | 1.38 in |
| Operating Method | Two-Hand/Plunger-Hand Lever |
| Clamping Force | 100 N |
| Operating Force | 3000 N |
| Rapid Stroke | 100 mm;200 mm;300 mm |
| Maximum Clamping Stroke | 4 mm |
| Clamping Range | 73.75 in |
| Base Mounting Style | Foot |
| Length | 133 mm |
| Width | 115 mm |
| Height | 71 mm |
| Weight | 5.85 lb |
