Toggle Clamp – CL-200-LVTC with Safety Lock (150 lbs)

Toggle Clamp – CL-200-LVTC with Safety Lock (150 lbs)

$43.84


Brand: Carr Lane

Toggle Clamp – CL-200-LVTC with Safety Lock (150 lbs)

SKU: CL-200-LVTC Category:

Description

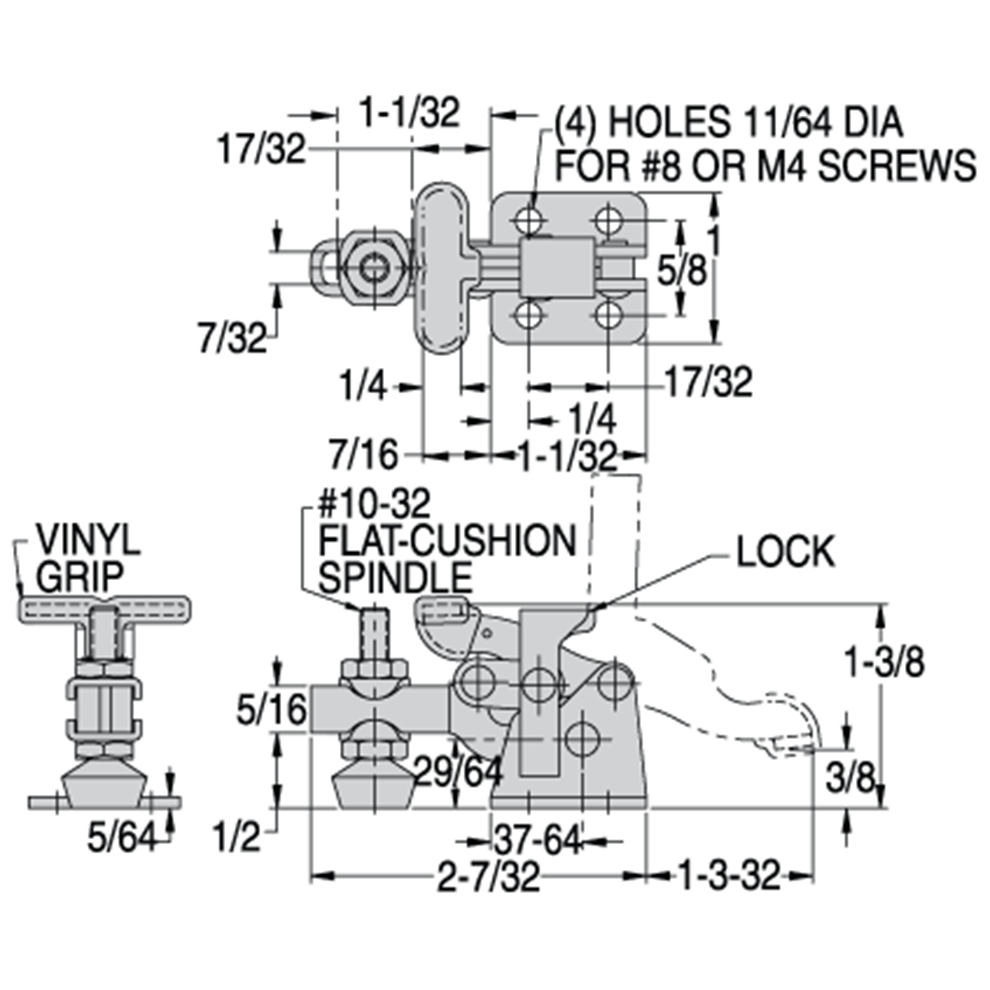

CL-200-LVTC Open Arm, Flanged Base, T Handle Safety-lock version of our CL-200-VTC toggle clamp. The integral safety lock automatically engages when the clamp is closed, then remains locked until manually disengaged by pressing the lever before opening. This prevents the clamp from being accidentally opened by bumping the handle.Miniature hold-down clamp with a unique finger-grip T handle. Extremely compact design. Arm opens 92° while handle moves 175°. Open arm provides adjustable spindle location. 150 lbs holding capacity.

Additional information

Product Type

Maximum Holding Capacity

150 lb

Material

1008 Steel;1010 Steel;1018 Steel (Clamp Body);400 Stainless (Rivets);Vinyl (Handle)

Base Mounting Style

Flanged

Clamp Arm Style

Open Arm

Handle Style

Vertical

Standards Met

DFARS;RoHS Compliant
