Additional information

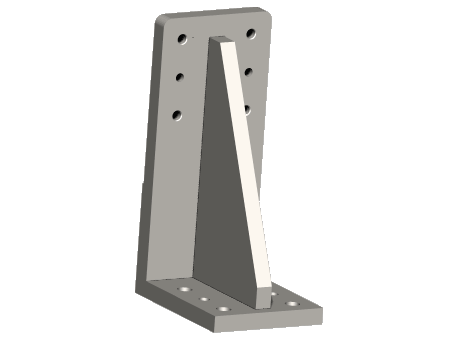

| Product Type | Riser Angle Bracket |
|---|---|
| Series | AAB |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter | 13.5 mm |
| Threaded Mounting Hole Size | 11 mm |
| Center Hole Diameter | 10 F7 |
| Center to End Length | 47.5 mm |
| Material | Steel |
| Material Grade | ASTM A-36 |
| Fabrication Process | Welded |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 110 mm |
| Overall Height | 140 mm |
| Weight | 9.07 kg |
| Dimension (Thickness) | 15 mm |
