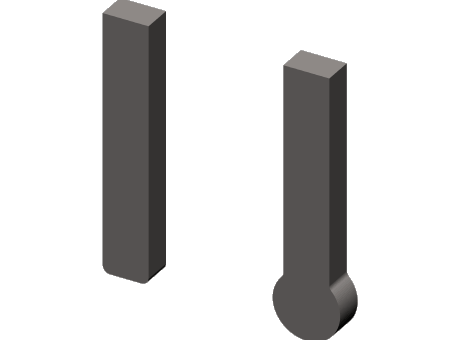

NAAMS ACA101 Power Clamp Arm Blanks - Image 2

NAAMS ACA101 Power Clamp Arm Blanks

Brand: NAAMS

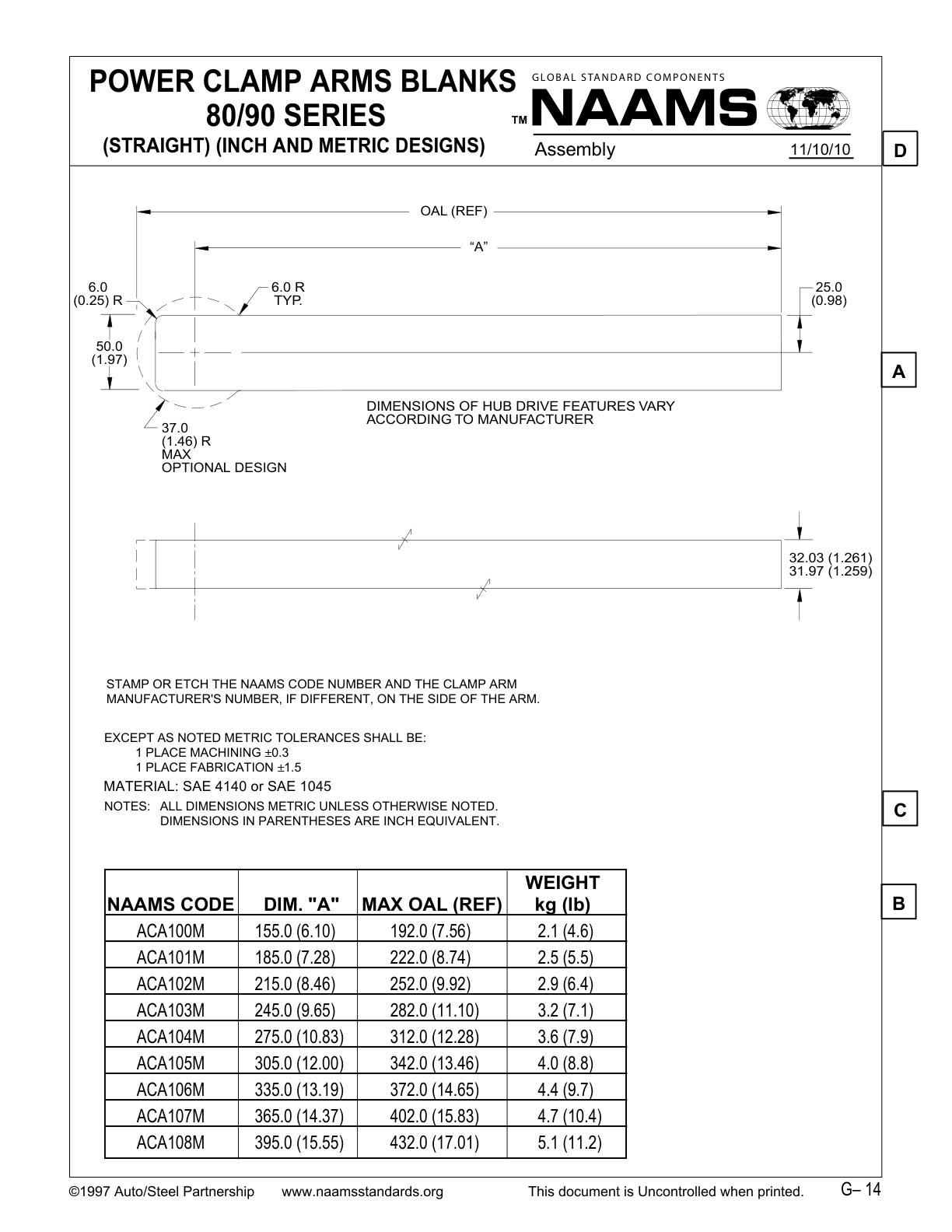

POWER CLAMP ARMS BLANKS 80/90 SERIES (STRAIGHT) (INCH AND METRIC DESIGNS)

SKU: ACA101 Category: NAAMS Power Clamp Arms

Technical Specification

Additional information

Product Type	Power Clamp Arm Blanks
Series	80/90
Clamp Style	Straight
Center to End Length	7.28 in
Material Grade	SAE 4140 or SAE 1045
Machining Tolerance	+/- 0.3
Fabrication Tolerance	+/- 1.5
Overall Length	8.74 in
Overall Width	1.97 in
Weight	5.5 lb
