Description
Heavy-duty swivel foot pivots to contact sloped surfaces evenly. Large swivel ball provides high load capacity with a 18° total swivel angle. Available with tapped-hole sizes from 1/4-20 to 1″-8 (M6 to M20 in metric). Made in USA.
Swivel Pad
$23.32
Brand: Carr Lane
Swivel Pad
Additional information

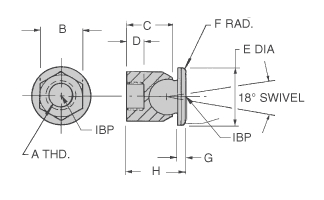

| Product Type | Swivel Pad |
|---|---|
| Thread Size (A) | M16 |
| Hex Nut Width (B) | 24 mm |
| Hub Length (D) | 9 mm |
| Material | 1215 Steel |
| Pad Material | Aluminum;1215 Steel |
| Finish | Black Oxide |
| Under Head to End (C) | 25.5 mm |
| Head Diameter (E) | 28.5 mm |
| Head Thickness (F) | 2.5 mm |
| Head Height (G) | 4 mm |
| Head Tip Diameter (E) | 28.5 mm |
| Overall Height (H) | 32 mm |
| Standards Met | DFARS;RoHS Compliant |
