Description
High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.
Forged Anchor Shackle
$58.10
Brand: Carr Lane
Forged Anchor Shackle
Additional information
| Product Type | Forged Anchor Shackle |
|---|---|
| Maximum Load Rating | 6500 lb |
| Nominal Shackle Size | 5/8 in |
| Shackle Diameter | 0.69 in |
| Material | Alloy Steel |

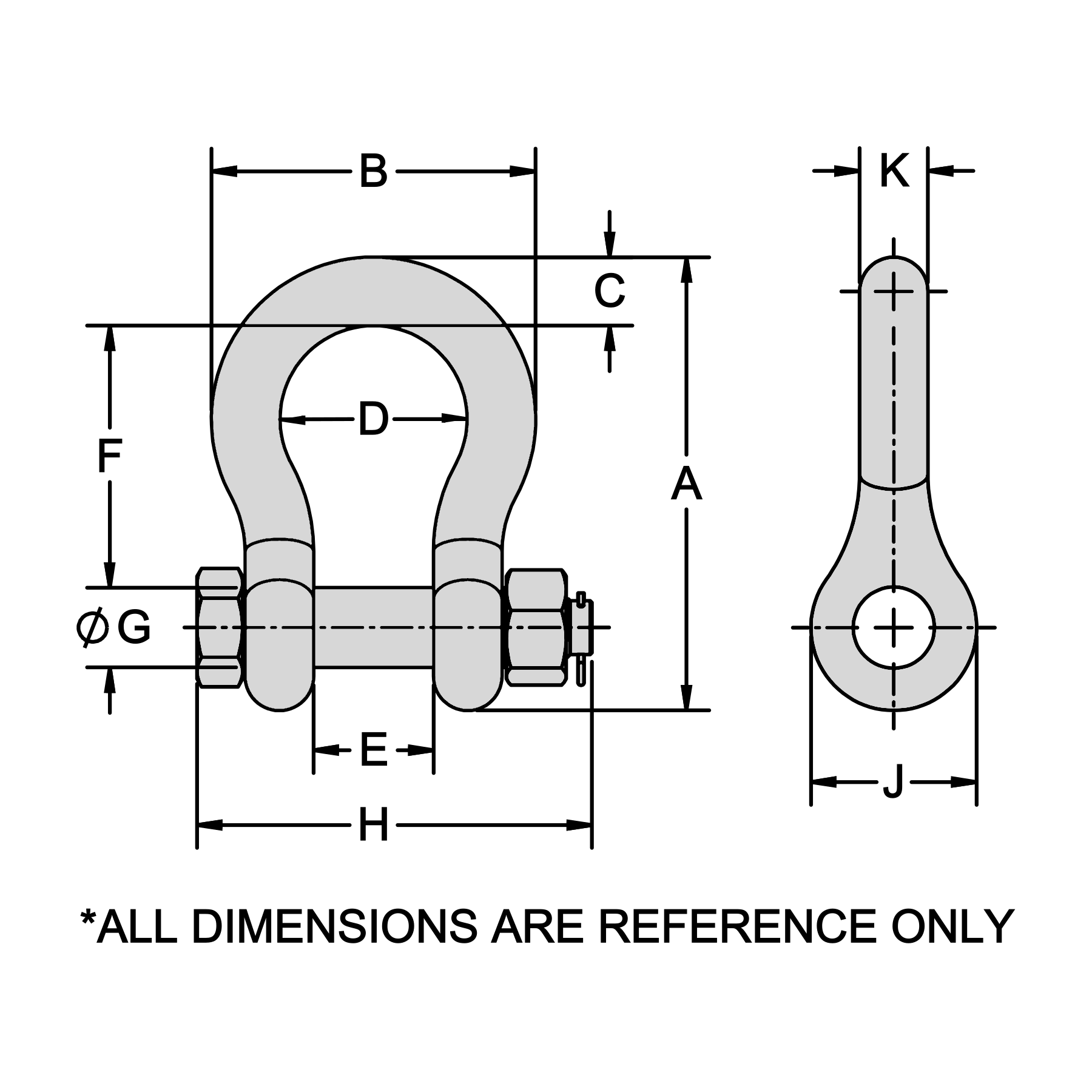

| Jaw Opening (E) | 1.06 in |
| Finish | Black Oxide |
| Inside Height (D) | 1.69 in |
| Inside Width (F) | 2.38 in |
| Pin Diameter (Dia G) | 0.75 in |
| Outside Width (B) | 2.94 in |
| Ear Height (H) | 3.53 in |
| Ear Width (J) | 1.5 in |
| Bow Diameter (K) | 5/8 in |
| Overall Height (A) | 4.19 in |
| Standards MET | DFARS;RoHS Compliant |
