Additional information

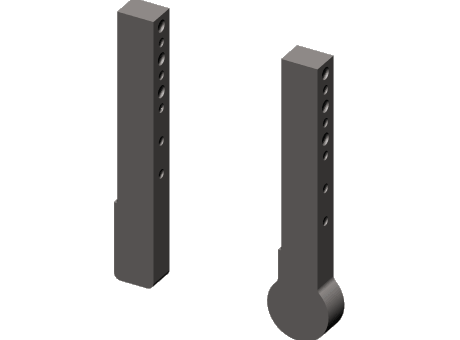

| Product Type | Power Clamp Arm |
|---|---|
| Series | 80/90 |
| Clamp Style | Straight |
| Center to End Length | 365 mm |
| Material Grade | SAE 4140 or SAE 1045 |
| Machining Tolerance | +/- 0.3 |
| Fabrication Tolerance | +/- 1.5 |
| Overall Length | 402 mm |
| Overall Width | 48 mm |
| Weight | 3.9 kg |

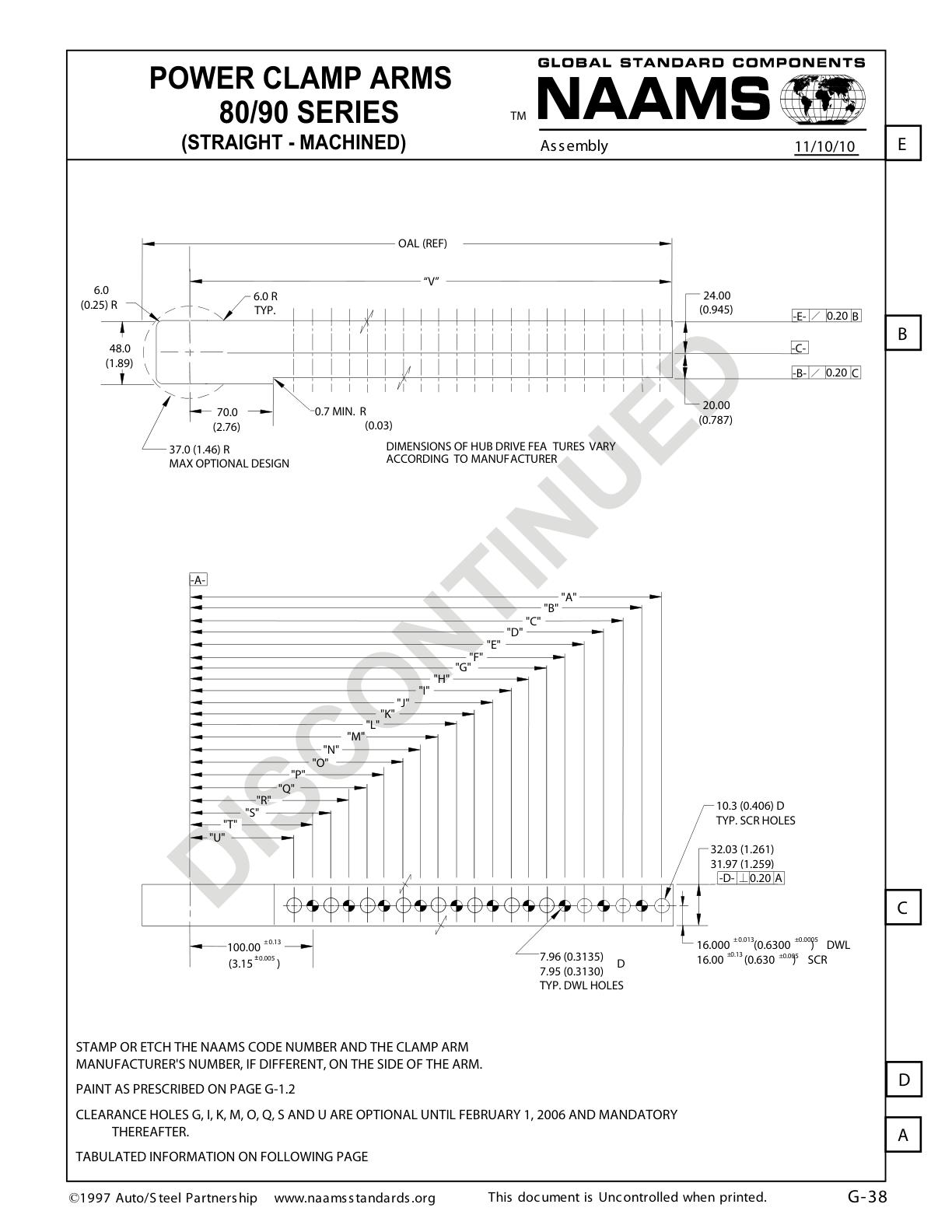

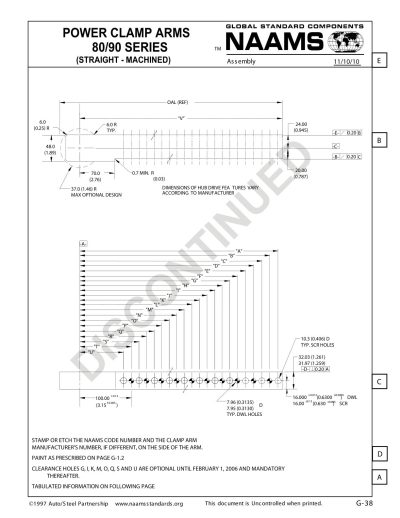

| Dimension (A) | 355 mm |
| Dimension (B) | 340 mm |
| Dimension (C) | 325 mm |
| Dimension (D) | 310 mm |
| Dimension (E) | 295 mm |
| Dimension (F) | 280 mm |
| Dimension (G) | 265 mm |
| Dimension (H) | 250 mm |
| Dimension (I) | 235 mm |
| Dimension (J) | 220 mm |
| Dimension (K) | 205 mm |
| Dimension (L) | 190 mm |
| Dimension (M) | 175 mm |
