Description
- Sensor ready for round style sensors
- Clamping Arm not included
- Left Hand Swing

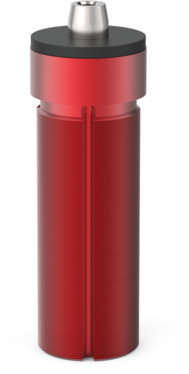

Pneumatic Swing Clamp
$517.06
Brand: Destaco
Pneumatic Swing Clamp
Additional information
| Product Type | Pneumatic Swing Clamp |
|---|---|
| Clamp Stroke | 0.38 in |
| Cylinder Bore Size | 0.75 in |
| Clamping Force | 18 lbf |
| Rotary Stroke | 0.85 in |
| Swing Direction | LH |
| Air Port Size | #10-32 |
| Air Consumption | 0.002 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.47 in |
| Sensor (Yes/No) | Yes |
| Mounting Type | Threaded |
| Length | 3.9 in |
| Width | 1.25 in |
| Height | 1.25 in |
| Weight | 1 lb |
