Description
- Swing direction is field adjustable between left or right
- Multiple mounting accessories
- Sensor ready
- Robust design for several millions cycles

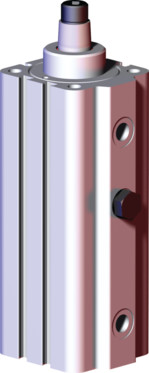

Pneumatic Swing Clamp
$502.11
Brand: Destaco
Pneumatic Swing Clamp
Additional information
| Product Type | Pneumatic Swing Clamp |
|---|---|
| Clamp Stroke | 0.39 in |
| Cylinder Bore Size | 0.79 in |
| Clamping Force | 18 lbf |
| Rotary Stroke | 0.83 in |
| Swing Direction | LH & RH |
| Air Port Size | M5 |
| Air Consumption | 0.002 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.43 in |
| Sensor (Yes/No) | Yes |
| Mounting Type | Block Style |
| Length | 4.93 in |
| Width | 1.56 in |
| Height | 1.26 in |
| Weight | 0.66 lb |
