Description

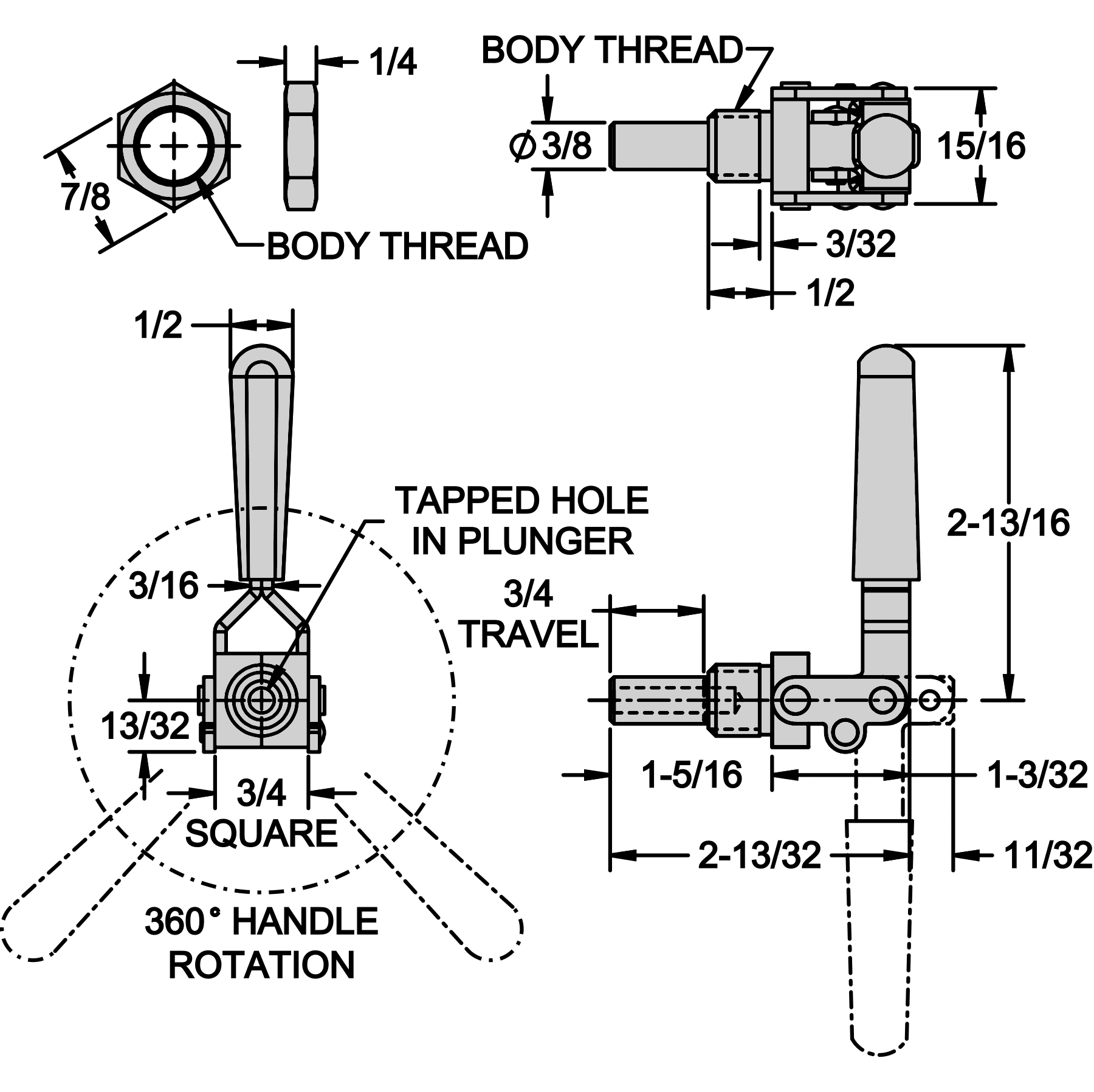

CL-150-TPCTapped Plunger Compact plunger clamp for mounting through panels, plates, or angle brackets. Install in a 5/8″-diameter drilled hole or a 5/8-18 tapped hole (M16x1.5 in metric), securing with the locknut provided. Rotate clamp to position handle anywhere within 360°. Locks in extended or retracted position. 3/4″ plunger travel. Plunger is tapped to accept any 1/4-20 spindle (M6 in metric). 200 lbs holding capacity.
