Construction Ball – Shoulder Type (1/2″ Ball)

Construction Ball – Shoulder Type (1/2″ Ball)

$57.38


Brand: Carr Lane

Construction Ball – Shoulder Type (1/2″ Ball)

SKU: CL-2-SCB-S Category:

Description

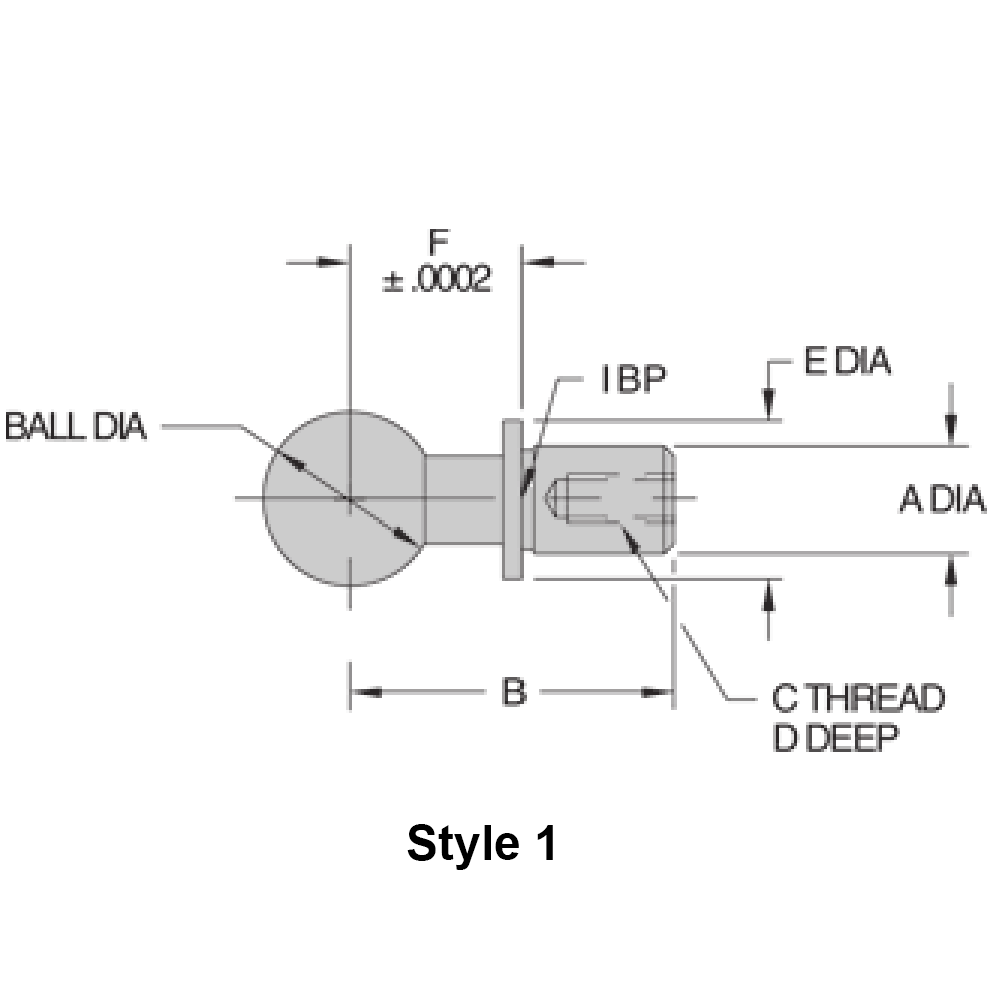

Now also available in stainless steel! Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002″ TIR. Construction Balls are available with 1/4, 3/8, 1/2, and 3/4″ ball sizes (6, 12, and 20mm in metric). The 1/2″ ball size is shown here, available in several shank diameters and lengths, in steel and stainless steel. Made in USA.
