Description

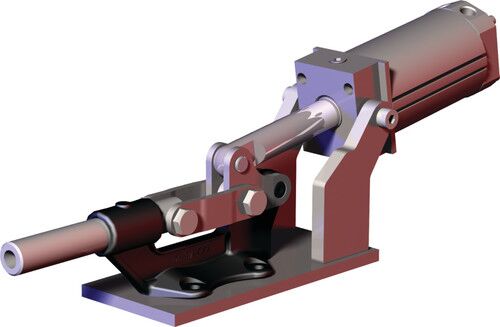

- Pneumatic version of Model 650 manual straight line action clamp
- Sensor ready for round or T-slot style sensors
- Built-in flow restriction eliminates need for external flow controls
- Replacement Clamp Assembly: 850-M-LC
Pneumatic Straight Line Clamp
$1,334.21
Brand: Destaco
Pneumatic Straight Line Clamp
Additional information
| Product Type | Pneumatic Straight Line Clamp |
|---|---|
| Maximum Holding Capacity | 16000 lbf |
| Plunger Travel | 2 in |
| Plunger Height | 2.63 in |
| Plunger Thread | M16 |
| Air Port Size | G-1/8 |
| Air Consumption | 0.109 cu ft |
| Duty Cycle | Excellent/High |
| Cylinder Bore Size | 2.48 in |
| Length | 20.56 in |
| Width | 4 in |
| Height | 7.21 in |
| Operating Temperature Range | -14 to 194 °F |
| Weight | 16.7 lb |
