Air-Powered Toggle Clamp – CL-2000-PTC Series (1000 lbs)

Air-Powered Toggle Clamp – CL-2000-PTC Series (1000 lbs)


Brand: Carr Lane

Air-Powered Toggle Clamp – CL-2000-PTC Series (1000 lbs)

SKU: CL-2000-PTC Category:

Description

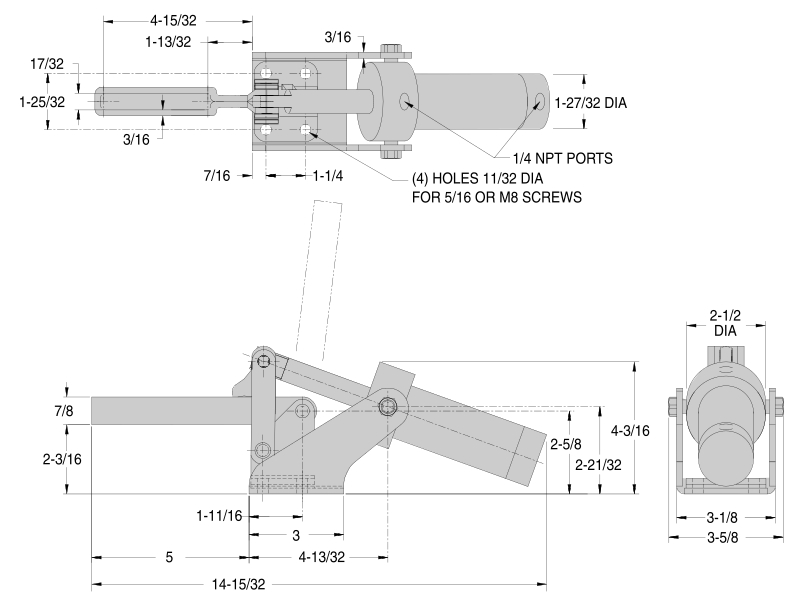

Powerful, larger-size air clamp. Similar to a wide-opening vertical-handle toggle clamp, except operated by an air cylinder instead of by hand. Toggle linkage provides high holding capacity and insures positive mechanical locking even if air pressure fails. Clamping arm opens 83°. Choose either an open arm for adjustable spindle location, or a solid arm for fixed spindle location. 1000 lbs holding capacity. This clamp is operated by a 1-3/4″-bore double-acting air cylinder, with Buna-N seals for -20° to +200°F operating temperature. Two 1/4-NPT ports. 100-psi maximum input air pressure exerts 680 lbs maximum clamping force at center of arm.

Additional information

Product Type

Air-Powered Toggle Clamp

Maximum Holding Capacity

1000 lb

Clamping Force

680 lb

Maximum Air Inlet Pressure

100 psi

Material

1008 Steel;1010 Steel;1018 Steel (Clamp Body);Steel and Aluminum (Air Cylinder);400 Stainless (Rivets)

Finish

Zinc Plated Clear Chromate

Standards Met

DFARS;RoHS Compliant
