Description
- Lightweight and robust, designed for several million cycles
- Clamping arms sold separately
- Maximum operating pressure 8 bar (120 psi)
- Replaces 89B30-010-1L

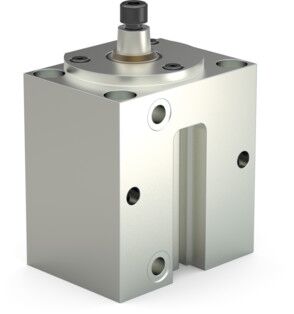

Block Style Pneumatic Swing Clamp
$773.43
Brand: Destaco
Block Style Pneumatic Swing Clamp
1 in stock
Additional information
| Product Type | Pneumatic Swing Clamp |
|---|---|
| Clamp Stroke | 0.39 in |
| Cylinder Bore Size | 1.25 in |
| Clamping Force | 52 lbf |
| Rotary Stroke | 0.83 in |
| Swing Direction | LH |
| Air Port Size | G-1/8 |
| Air Consumption | 0.008 cu in double stroke at 7 psi |
| Stroke During Rotation | 0.43 in |
| Sensor (Yes/No) | Yes |
| Mounting Type | Block Style – Side or Top Mount |
| Length | 4.13 in |
| Width | 3.35 in |
| Height | 2.17 in |
| Weight | 2.25 lb |
