Locator Bushing

Locator Bushing


Brand: Carr Lane

Locator Bushing

SKU: CLM-6-B Category:

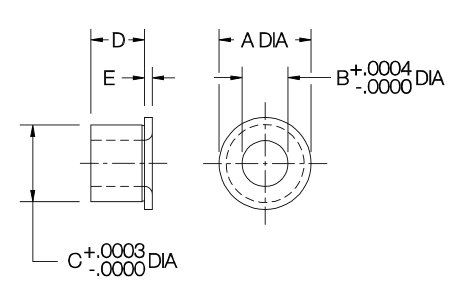

Precision bushing used with a Bullet-Nose Round Pin or Bullet-Nose Diamond Pin to align two pieces of a fixture. The pin’s shank diameter and the bushing’s OD are exactly the same size, to allow boring the installation hole in both fixture pieces at the same time for greater accuracy. The bushing’s ID and OD are concentric to within .0003″ TIR. Available for pin diameters 1/4, 5/16, 3/8, 1/2, 3/4, and 1″ (6, 8, 10, and 12mm in metric). Made in USA.

Additional information

Product Type


1144 Steel

Standards Met

DFARS;RoHS Compliant
