Forged Anchor Shackle

Forged Anchor Shackle


Brand: Carr Lane

Forged Anchor Shackle

SKU: CL-36571-FAS Category:


High-strength forged alloy-steel anchor shackle, available in seven sizes. Supplied with a thin-head bolt and a nut with cotter pin. Meets Federal Specification RR-C 271D, Type IVA, Grade A, Class 3. Safety factor = 6:1.

Additional information

Product Type

Maximum Load Rating

24000 lb

Nominal Shackle Size

1-1/4 in

Shackle Diameter

1.38 in


Alloy Steel

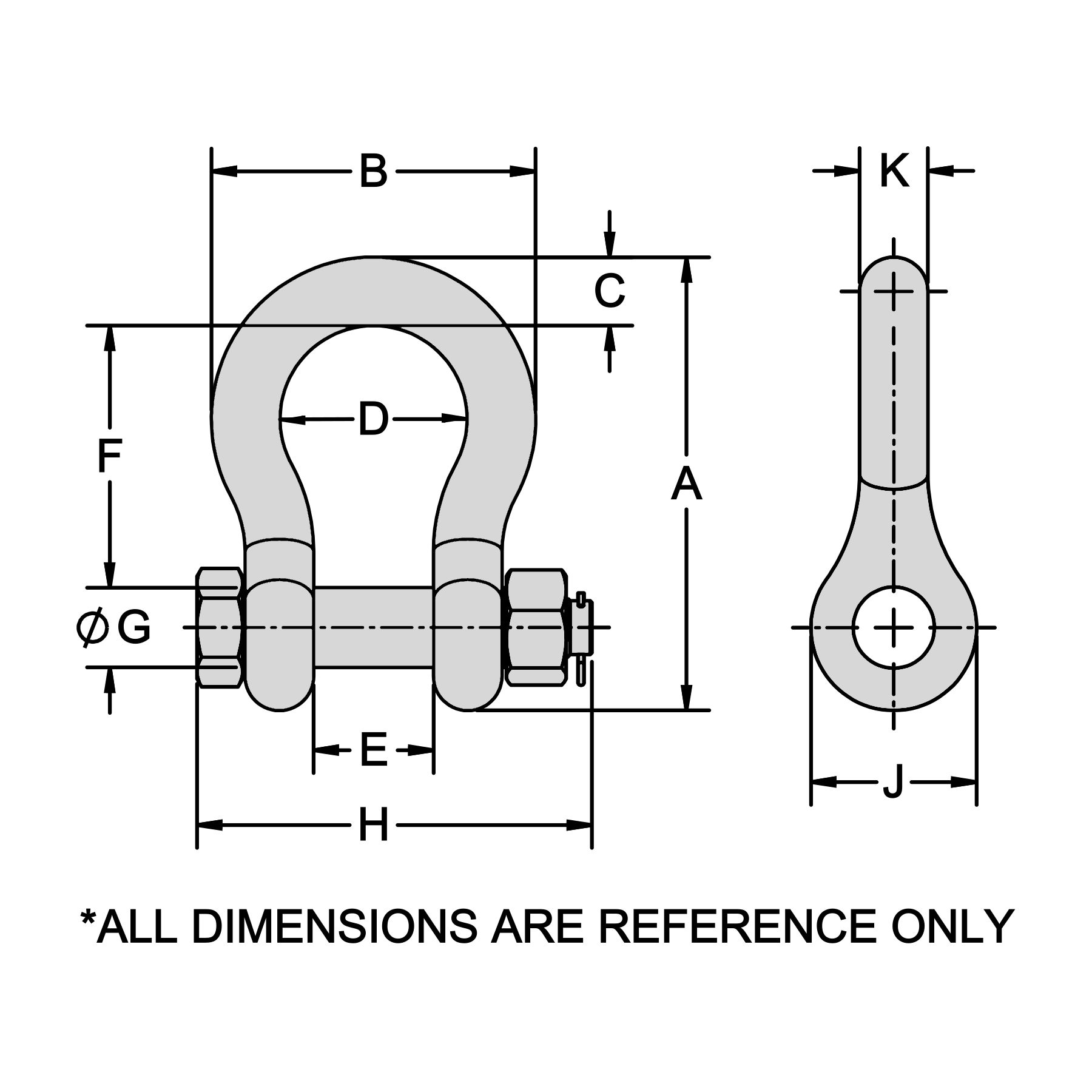

Jaw Opening (E)

2.03 in


Black Oxide

Inside Height (D)

3.25 in

Inside Width (F)

4.69 in

Pin Diameter (Dia G)

1.38 in

Outside Width (B)

5.75 in

Ear Height (H)

6.51 in

Ear Width (J)

3 in

Bow Diameter (K)

1-1/4 in

Overall Height (A)

8.25 in

Standards MET

DFARS;RoHS Compliant
